Tridonic LED-Driver LC 60W 150–550mA 230V bDW NFC h16 PRE4 - 28004619

Tridonic GmbH & Co KG

Tridonic LED-Driver LC 60W 150–550mA 230V bDW NFC h16 PRE4 - 28004619

Product number: 28004619

Immediately available

€87.66


Prices incl. VAT plus shipping costs net €73.66

Product information "Tridonic LED-Driver LC 60W 150–550mA 230V bDW NFC h16 PRE4 - 28004619"

Product description
  • Can be integrated in Casambi systems (Casambi Ready)
  • NEW: lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance)
  • Dimmable built-in constant current LED driver
  • Dimming range 1 to 100 %
  • For luminaires of protection class I and protection class II
  • Adjustable output current between 150 and 550 mA
  • Max. output power 60 W
  • Up to 94 % efficiency
  • Power input on stand-by < 0.14 W
  • Nominal lifetime up to 100,000 h
  • 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Housing properties
  • Low profile metal casing with white cover
  • Only 16 mm housing height
  • Type of protection IP20
Interfaces
  • basicDIM Wireless
  • Near field communication (NFC)
  • switchDIM
  • Terminal blocks: 0° push terminals
Functions
  • Adjustable output current in 1-mA-steps (NFC)
  • lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance)
  • Constant light output function (eCLO)
  • Power-up fading at AC
  • Switch off the driver with fade2zero
  • Protective features (overtemperature, short-circuit, overload, no-load)
  • Suitable for emergency escape lighting systems acc. to EN 50172
Benefits
  • Flexible configuration via companionSUITE
  • Support NFC multiple programming (full carton box)
  • Application-oriented operating window for maximum compatibility
  • Best energy savings due to low stand-by losses and high efficiency
  • Reliability proven by lifetime up to 100,000 h and 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Typical applications
  • For linear/area lighting in office applications
EAN/UPC: 9006210801490
Country of Origin: AT
Customs tariff No.: 85044095
Electrical data
output current: 150, 200, 250, 300, 350, 400, 450, 500, 550
operating mode: constant current

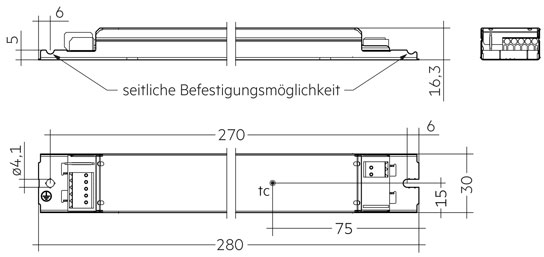

Dimensions & packaging
