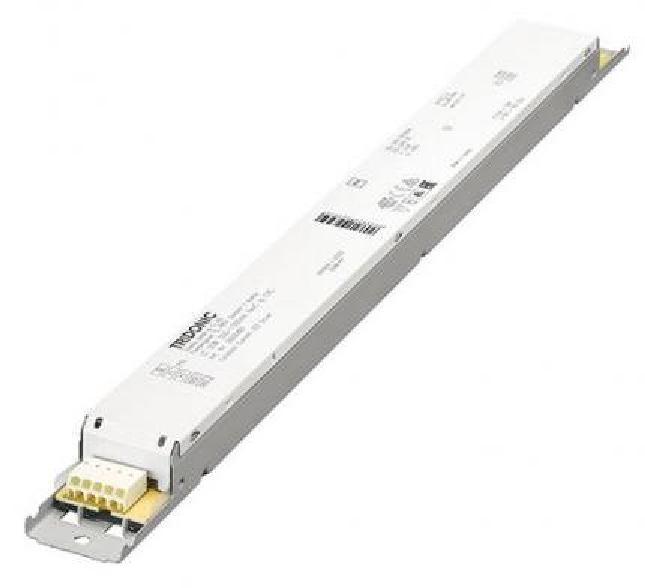

Tridonic LED-Driver LC 50W 350-1050mA flexC lp EXC - 28000681

Tridonic GmbH & Co KG

Tridonic LED-Driver LC 50W 350-1050mA flexC lp EXC - 28000681

Product number: 28000681

Immediately available

€30.42


Content: 1 Stück

Prices incl. VAT plus shipping costs net €25.56

Product information "Tridonic LED-Driver LC 50W 350-1050mA flexC lp EXC - 28000681"

Highly efficient 50W LED ECG for built-in use

The constant current LED driver LC 50W 350-1050mA flexC lp EXC from the Excite range by Tridonic is suitable for installation in luminaires of protection class I and II. It has a maximum output power of 50 watts. Its very high efficiency of up to 90% ensures energy savings. The low profile housing is made of metal and has a white cover.

Output current adjustable

Ideal applications include linear and area lighting in office applications. The application-oriented operating window ensures maximum compatibility. Via ready2mains programmer or I-select 2 connector, the output current can be set in 1 mA steps between 350 and 1050 mA. Using the ready2mains technology, the LED driver can also be configured over the network. In addition, 0 ° plug-in terminals are available.

The Tridonic LED ECG is protected against overtemperature, short circuit, overload, open circuit and at the input voltage range. It is also suitable for emergency lighting systems according to EN 50172. The nominal life is up to 100,000 hours. Tridonic offers a 5-year warranty.

Electrical data
output current: 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000, 1050
operating mode: constant current
rated voltage: 220-240 V
lifetime: 100000 h
Casing
form type: linear
max housing temperature (tc-max): 85 °C
protection type: IP20
mounting: Installation
environment temperature from: -25 °C
environment temperature to: 70 °C
Photometric data
color: white
Logistic data
item category: LED drivers
Dimensions & packaging
EAN 9006210524412
Length 280 mm
Width 30 mm
Height 21 mm
Weight 230 g
