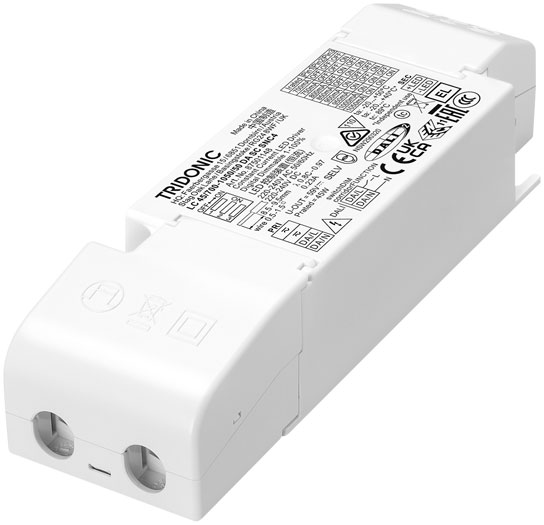

Tridonic LED-Driver LC 45/700-1050/50 DA SC SNC4 - 87501148
Tridonic GmbH & Co KG
Tridonic LED-Driver LC 45/700-1050/50 DA SC SNC4 - 87501148
Product number:
87501148
Immediately available
€22.37
net €18.80
Product information "Tridonic LED-Driver LC 45/700-1050/50 DA SC SNC4 - 87501148"
Product description:
- Can be either used built-in or independent with clip-on strain-relief
- For luminaires of protection class I and protection class II
- For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
- Temperature protection as per EN 61347-2-13 C5e
- Adjustable output current via dip switch or DALI
- Selectable fixed output current 700, 750, 800, 850, 900, 950, 1,000 and 1,050 mA (pre-selected current 700 mA)
- Max. output power 45 W
- Up to 89.5 % efficiency
- Nominal lifetime up to 100,000 h
Housing properties:
- Casing: polycarbonate, white
- Type of protection IP20
Interfaces:
- one4all (DALI-2, switchDIM, corridorFUNCTION)
- Terminal blocks: 45° push terminals
Functions:
- Adjustable output current in 1-mA-steps (DALI)
- Constant light output function (CLO)
- Protective features (overtemperature, short-circuit, overload, no-load)
- Suitable for emergency escape lighting systems acc. to EN 50172
Benefits:
- Flexible configuration via companionSUITE (DALI)
- Application-oriented operating window for maximum compatibility
- Best energy savings due to low stand-by losses and high efficiency
Typical applications:
- For downlight, spotlight and decorative applications
