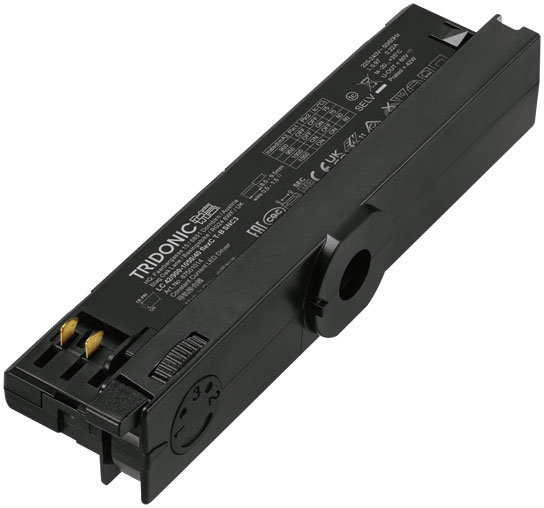

Tridonic LED-Driver LC 42W 900-1050mA flexC T SNC3 - 87501014
Tridonic GmbH & Co KG
Tridonic LED-Driver LC 42W 900-1050mA flexC T SNC3 - 87501014
Product number:
87501014
Shipping in 5 day(s)
€16.61
net €13.96
Product information "Tridonic LED-Driver LC 42W 900-1050mA flexC T SNC3 - 87501014"
Product description
- Constant current / in-track LED driver
- Optional accessory ACU ALU NIPPLE M10x1 for mounting the luminaire head
- Compatible 3-phase system in-tracks, see data sheet chapter 3.8
- For luminaires of protection class II
- Temperature protection as per EN 61347-2-13 C5e
- Selectable fixed output current via DIP switch 1,050, 1,000, 950 and 900 mA (pre-selected current 900 mA)
- Max. output power 42 W
- Up to 86 % efficiency
- Nominal lifetime up to 100,000 h
- 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Housing properties
- Casing: polycarbonate, black, white or grey
- Type of protection IP20
Functions
- Overload protection
- Short-circuit protection
- No-load protection
Typical applications
- For spot light in retail and hospitality application
EAN/UPC: 9006210783697
Country of Origin: CN
Customs tariff No.: 85044095
Downloads & Documents
Electrical data
| output current: | 900, 950, 1000, 1050 |
|---|---|
| operating mode: | constant current |

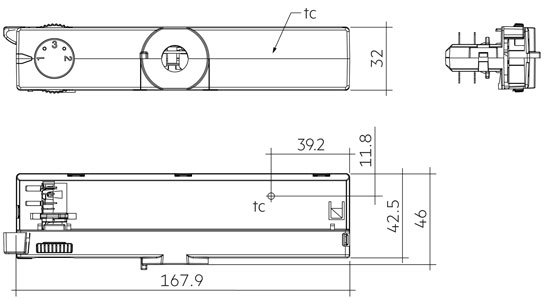

Dimensions & packaging
