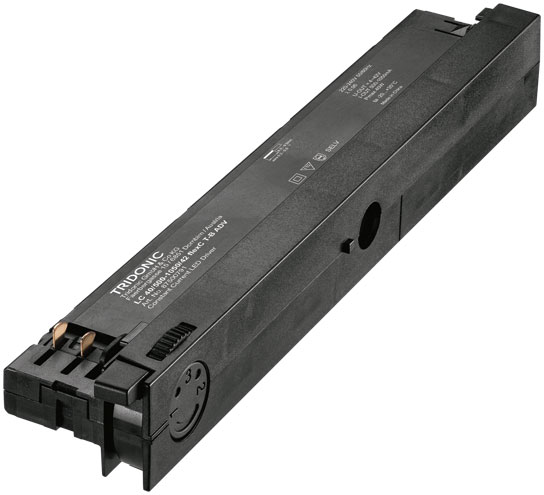

Tridonic LED-Driver LC 40W 500-1050mA flexC T ADV - 87500791
Tridonic GmbH & Co KG
Tridonic LED-Driver LC 40W 500-1050mA flexC T ADV - 87500791
Product number:
87500791
These options are currently not available.
€31.33
Prices incl. VAT plus shipping costs net €26.33
Product information "Tridonic LED-Driver LC 40W 500-1050mA flexC T ADV - 87500791"
Product description
- Constant current / in-track LED driver
- Optional accessory ACU ALU NIPPLE M10x1 for mounting the luminaire head
- Compatible 3-phase system in-tracks, see data sheet chapter 3.8
- For luminaires of protection class II
- Temperature protection as per EN 61347-2-13 C5e
- Adjustable output current between 500 and 1,050 mA via I-SELECT 2 plugs
- Max. output power 40 W
- Up to 87 % efficiency
- Nominal lifetime up to 100,000 h
- 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Housing properties
- Casing: polycarbonate, black, white or grey
- Type of protection IP20
Functions
- Overtemperature protection
- Overload protection
- Short-circuit protection
- No-load protection
- Burst protection voltage 1 kV
- Surge protection voltage 1 kV (L to N)
Typical applications
- For spot light in retail and hospitality application
EAN/UPC: 9006210686707
Country of Origin: CN
Customs tariff No.: 85044083
Downloads & Documents
Electrical data
| output current: | 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000, 1050 |
|---|---|
| operating mode: | constant current |

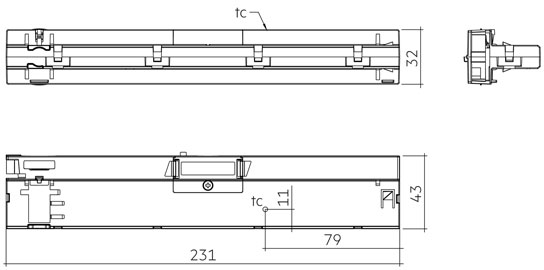

Dimensions & packaging
