Tridonic LED-Driver LC 38/350-1050/50 bDW TW SR PRE2 - 28002584

Tridonic GmbH & Co KG

Tridonic LED-Driver LC 38/350-1050/50 bDW TW SR PRE2 - 28002584

Product number: 28002584

Immediately available

€131.19


Content: 1 Stück

Prices incl. VAT plus shipping costs net €110.24

Product information "Tridonic LED-Driver LC 38/350-1050/50 bDW TW SR PRE2 - 28002584"

basicDIM wireless dimmable 2-channel LED ECG

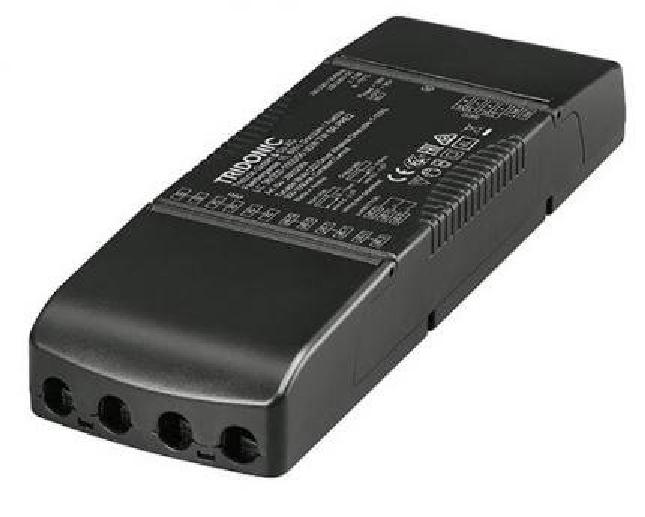

The dimmable 2-channel constant current LED driver LC 38 / 350-1050 / 50 bDW TW SR PRE2 from the premium Tunable White series by Tridonic is suitable for installation in luminaires of protection class I and II or for independent mounting. It has a nominal power of 38 watts. The power consumption in stand-by is <0.37 W, the efficiency up to 87% - so you save energy!

Ideal application areas are spotlights and downlights in retail and hospitality applications. The LED ECG is also suitable for emergency lighting systems according to EN50172.

Output current adjustable via I-select 2 plugs

The LED driver automatically forms a wireless communication network with up to 127 nodes. It can be dimmed in a range of 1 - 100% via basicDIM Wireless. The output current can be set between 350 and 1,050 mA via I-select 2 plugs. In addition, 45 ° and 0 ° plug-in terminals are available.

The application-oriented operating window ensures maximum compatibility. In addition, the LED ECG has a constant light output function (CLO), power-up fading and fade-to zero. It is protected against overtemperature, short circuit, overload and no load and has a reduced surge amplification. The case has IP20 protection and is made of black polycarbonate.

CASAMBI functionality: lighting control via app

The basicDIM Wireless LED driver also has all the CASAMBI functionality: You can integrate it into any CASAMBI Bluetooth network and then conveniently control it via an app on your smartphone or tablet.

The nominal lifetime of the LED driver is 100,000 hours. Tridonic offers a 5-year warranty.


Electrical data
number of channels: 2
operating mode: constant current
rated voltage: 220-240 V
lifetime: 100000 h
Casing
form type: rectangular
max housing temperature (tc-max): 75 °C
protection type: IP20
mounting: with strain relief
environment temperature from: -25 °C
environment temperature to: 55 °C
Photometric data
dimmable: yes
dimming range to: 100 %
dimming range from: 1 %
color: black
interface: basicDIM Wireless
Logistic data
item category: LED drivers

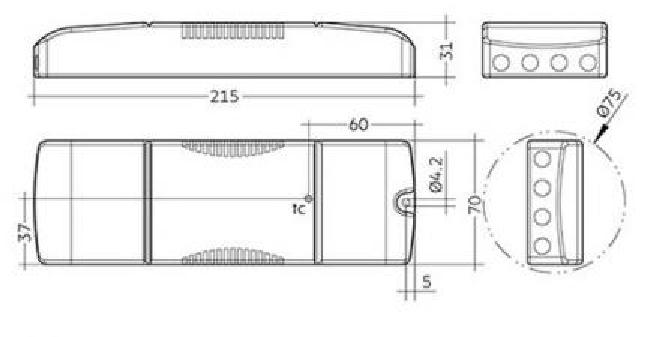

Dimensions & packaging
EAN 9006210685922
Length 215 mm
Width 70 mm
Height 31 mm
Weight 230 g

TRIDONIC
Tridonic Deutschland GmbH
Edisonalle 1
89231 Neu-Ulm DE

BestellungDE@tridonic.com

www.tridonic.com/en/int
