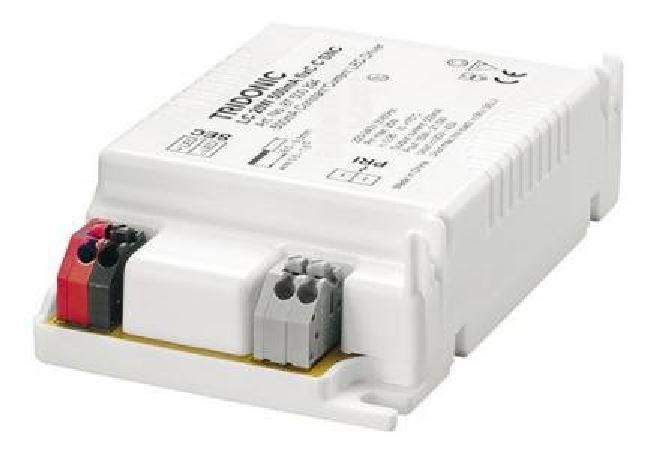

Tridonic LED-Driver LC 25W 600mA fixC C SNC - 87500575
Tridonic LED-Driver LC 25W 600mA fixC C SNC - 87500575
Immediately available
That's why you should buy this product now
- High Quality at a low price
- 4.8 out of 5 ⭐⭐⭐⭐⭐ on Google
- Short delivery times for stock items
€10.64
Prices incl. VAT plus shipping costs net €8.94
Product information "Tridonic LED-Driver LC 25W 600mA fixC C SNC - 87500575"
Constant current ECG for luminaire installation
With the LC 25W 600mA fixC C SNC from its ESSENCE series, Tridonic offers a compact emergency current capable constant current LED driver for luminaire installation. The output current is 600 mA at a maximum output power of 26 W.
Suitable for protection class I and II luminaires
The LED ECG is suitable for luminaires of protection class I and protection class II. It is equipped with IP20 protection. The housing is made of white polycarbonate.
The LED driver has over-temperature protection, overload protection, short-circuit protection and no-load protection. In addition, it is protected against surge voltages 1 kV (L to N) and surge voltages 2 kV (L/N to earth). The nominal life is up to 50,000 hours. Tridonic offers a 5-year warranty on the LED ECG.
Downloads & Documents
ENEC-Certificate-Tridonic-LED-Driver-LC-25W-600mA-fixC-C-SNC-87500575_1592173096_3
ENEC-Zertifikat-Tridonic-LED-Treiber-LC-25W-600mA-fixC-C-SNC-87500575_1592173096_4
Datenblatt-Tridonic-LED-Treiber-LC-25W-600mA-fixC-C-SNC-87500575_1592173096_5
RCM-Certificate-Tridonic-LED-Driver-LC-25W-600mA-fixC-C-SNC-87500575_1592173096_7
RCM-Zertifikat-Tridonic-LED-Treiber-LC-25W-600mA-fixC-C-SNC-87500575_1592173096_8
Datasheet-Tridonic-LED-Driver-LC-25W-600mA-fixC-C-SNC-87500575_1592173096_9
Login
Electrical data
| output current: | 600 |
|---|---|
| operating mode: | constant current |
Casing
| protection type: | IP20 |
|---|---|
| protection class: | I/II |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | LED drivers |
|---|

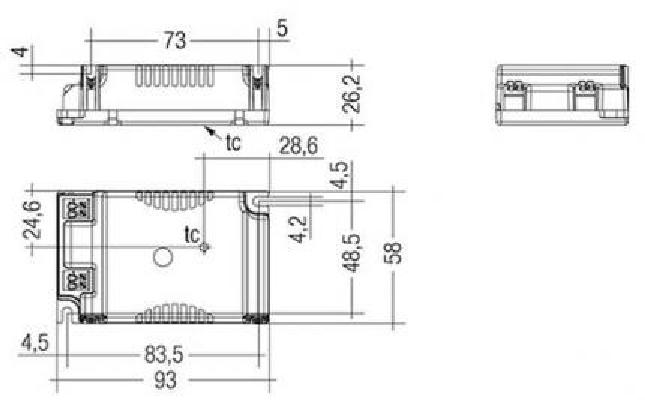

Dimensions & packaging
| EAN | 9006210603544 |
|---|---|
| Length | 93 mm |
| Width | 58 mm |
| Height | 26 mm |
