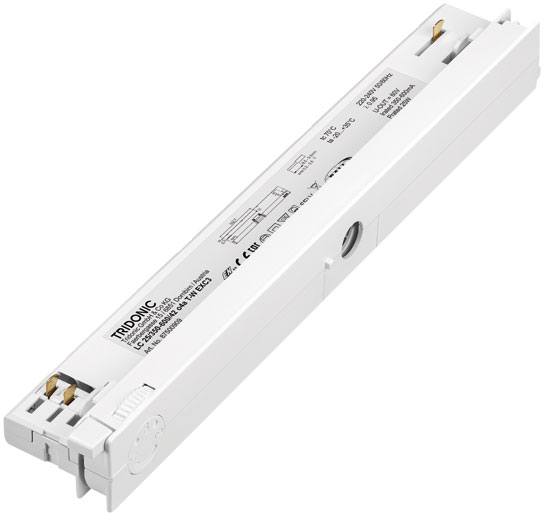

Tridonic LED-Driver LC 25W 350-600mA o4a T EXC3 - 87500909
Tridonic GmbH & Co KG
Tridonic LED-Driver LC 25W 350-600mA o4a T EXC3 - 87500909
Product number:
87500909
Shipping in 5 day(s)
€51.02
Prices incl. VAT plus shipping costs net €42.87
Product information "Tridonic LED-Driver LC 25W 350-600mA o4a T EXC3 - 87500909"
Product description
- Dimmable constant current / in-track LED driver
- Optional accessory ACU ALU NIPPLE M10x1 for mounting the luminaire head
- Compatible with Global Trac PULSE from Nordic Aluminum and OneTrack from Stucchi, see data sheet chapter 3.8
- Dimming range 1 to 100 % (min. 3.5 mA)
- For luminaires of protection class II
- Temperature protection as per EN 61347-2-13 C5e
- Adjustable output current between 350 and 600 mA via I-SELECT 2 plugs or DALI
- Max. output power 25 W
- Up to 83 % efficiency
- Power input on stand-by < 0.5 W
- Nominal lifetime up to 100,000 h
- 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Housing properties
- Casing: polycarbonate, black, white or grey
- Type of protection IP20
Interfaces
- one4all (DALI-2, switchDIM, corridorFUNCTION)
- Terminal blocks: 45° push terminals
Functions
- Adjustable output current in 1-mA-steps (DALI-2, I-SELECT 2)
- Overtemperature protection
- Overload protection
- Short-circuit protection
- No-load protection
- Burst protection voltage 2 kV
- Surge protection voltage 1 kV (L to N)
Benefits
- Flexible configuration via companionSUITE (DALI-2)
Typical applications
- For spot light in retail and hospitality application
EAN/UPC: 9006210716688
Country of Origin: CN
Customs tariff No.: 85044095
Downloads & Documents
Electrical data
| output current: | 350, 400, 450, 500, 550, 600 |
|---|---|
| operating mode: | constant current |
