Tridonic LED-Driver LC 17W 250-700mA flexC SR EXC - 28000699
Immediately available
€28.04
Prices incl. VAT plus shipping costs net €23.56
Product information "Tridonic LED-Driver LC 17W 250-700mA flexC SR EXC - 28000699"
The emergency-current capable, dimmable electronic ballast for LED modules LC 17W 250-700mA flexC SR EXC from the EXCITE series from Tridonic is perfectly suited for installation in downlights, spotlights and decorative applications. It can be used for luminaire installation as well as independent mounting.
With a ready2mains programmer or I-select 2 plugs, the output current can be adjusted in 1 mA steps between 250 and 700 mA. The LED driver has an energy efficiency of up to 84%. Its rated output is up to 17 watts.
With its ready2mains interface, the constant current LED driver can be dimmed in a dimming range of 15 to 100% depending on the load. The LED driver can also be configured via the ready2mains interface. In addition, the driver features 0°/45 ° push terminals.
The housing is made of white polycarbonate and is equipped with IP20 protection. Additionally, the LED driver is protected against overtemperature, short-circuit, overload, no-load and at input voltage range.
The service life is 100,000 hours. Tridonic offers a five-year warranty on the LED ECG.
Downloads & Documents
Datenblatt-Tridonic-LED-Treiber-LC-17W-250-700mA-flexC-SR-EXC-28000699_1592175763_2
Datasheet-Tridonic-LED-Driver-LC-17W-250-700mA-flexC-SR-EXC-28000699_1592175763_3
Declaration-of-Confirmity-Tridonic-LED-Driver-LC-17W-250-700mA-flexC-SR-EXC-28000699_1592175763_4
RCM-Zertifikat-Tridonic-LED-Treiber-LC-17W-250-700mA-flexC-SR-EXC-28000699_1592175763_5
ENEC-Certificate-Tridonic-LED-Driver-LC-17W-250-700mA-flexC-SR-EXC-28000699_1592175763_7
ENEC-Zertifikat-Tridonic-LED-Treiber-LC-17W-250-700mA-flexC-SR-EXC-28000699_1592175763_8
100015792_00_Gehaeuseaenderung_bei_LC_SR_EXC_de_3
Electrical data
| output current: | 250, 300, 350, 400, 450, 500, 550, 600, 650, 700 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| lifetime: | 100000 h |
Casing
| max housing temperature (tc-max): | 70 °C |
|---|---|
| protection type: | IP20 |
| mounting: | with strain relief |
| environment temperature from: | -25 °C |
| environment temperature to: | 55 °C |
Photometric data
| color: | white |
|---|---|
| interface: | ready2mains |
Logistic data
| item category: | LED drivers |
|---|

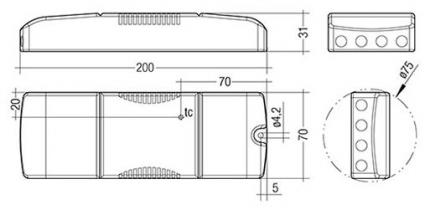

Dimensions & packaging
| EAN | 9006210525679 |
|---|---|
| Length | 200 mm |
| Width | 70 mm |
| Height | 31 mm |
| Weight | 180 g |
