Tridonic LED-Driver LC 150W 200-1050mA sl EXC - 28001698
Tridonic LED-Driver LC 150W 200-1050mA sl EXC - 28001698
Immediately available
That's why you should buy this product now
- High Quality at a low price
- 4.8 out of 5 ⭐⭐⭐⭐⭐ on Google
- Short delivery times for stock items
€61.73
Prices incl. VAT plus shipping costs net €51.87
Product information "Tridonic LED-Driver LC 150W 200-1050mA sl EXC - 28001698"

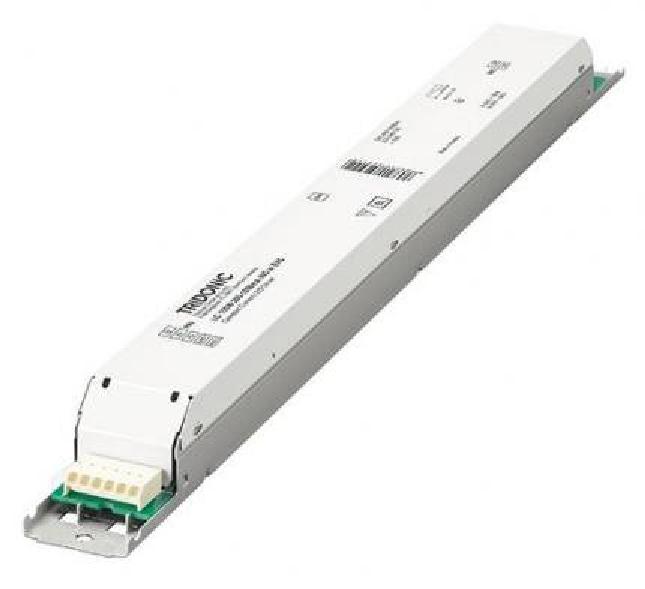

The DC-capable dimmable constant current LED driver LC 150W 200-1050mA sl EXC from the EXCITE range by TRIDONIC is suitable for luminaire installation. It is ideal for use in industrial applications in moderate environments such as semiconductor factories or logistic warehouses. The max. rated power is 150 watts.
The LED driver is designed for a life-time stated above under reference conditions and with a failure probability of less than 10 %.
Dimming is possible via the ready2mains interface in a dimming range of 10 -100%. The LED ECG can also be configured via the ready2mains interface. The output current is adjustable between 200 and 1,050 mA in 1mA steps via ready2mains or I-select 2.

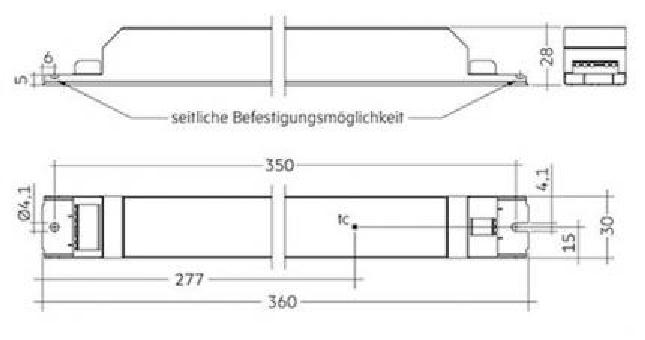

The slim white metal case is IP20-protected and measures 360 x 30 x 28 mm.
The LED ECG is suitable for mains voltage peaks (burst / surge) up to 4 kV and has a temperature range of -25 - +60 ° C. In addition, it is protected against overtemperature, short-circuit, overload, no load and at input voltage range and has a power-up fading function at AC. An Intelligent Temperature Guard (overtemperature protection) and an Intelligent Voltage Guard (overvoltage and undervoltage monitoring) are integrated as well.
The constant current LED driver has a nominal life of up to 100,000 hours. TRIDONIC offers a 5-year guarantee on the LED ECG.
Downloads & Documents
Declaration-of-Confirmity-TridonicLED-Driver-LC-150W-200-1050mA-sl-EXC-28001698_1592171221_3
RCM-Certificate-TridonicLED-Driver-LC-150W-200-1050mA-sl-EXC-28001698_1592171221_4
Datenblatt-Tridonic-LED-Treiber-LC-150W-200-1050mA-sl-EXC-28001698_1592171221_5
Konformitaetserklaerung-Tridonic-LED-Treiber-LC-150W-200-1050mA-sl-EXC-28001698_1592171221_6
RCM-Zertifikat-Tridonic-LED-Treiber-LC-150W-200-1050mA-sl-EXC-28001698_1592171215_8
Login
Electrical data
output current: | 200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000, 1050 |
---|---|
operating mode: | constant current |
rated voltage: | 220-240 V |
lifetime: | 100000 h |
Casing
form type: | linear |
---|---|
max housing temperature (tc-max): | 80 °C |
protection type: | IP20 |
mounting: | Installation |
environment temperature from: | -25 °C |
environment temperature to: | 60 °C |
Photometric data
color: | white |
---|---|
interface: | ready2mains |
Logistic data
item category: | LED drivers |
---|
Dimensions & packaging
EAN | 9006210612089 |
---|---|
Length | 360 mm |
Width | 30 mm |
Height | 28 mm |
Weight | 330 g |
