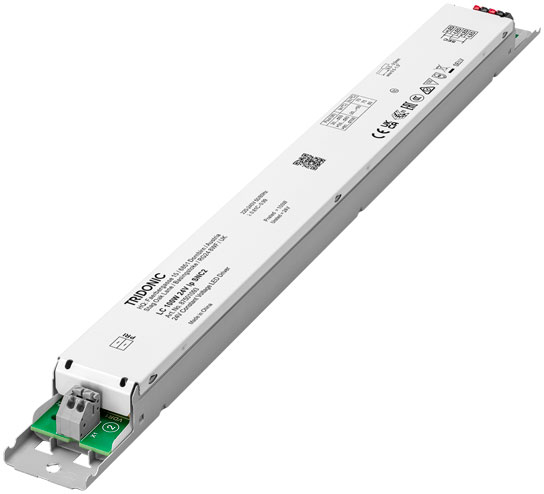

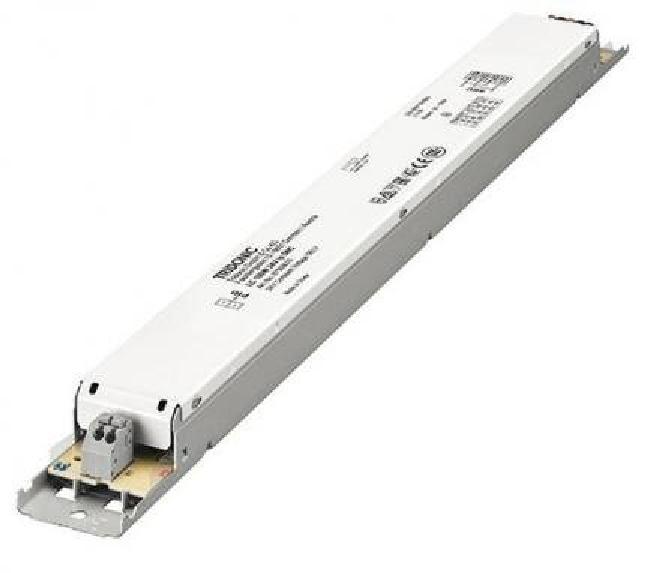

Product information "Tridonic LED-Driver LC 100W 24V lp SNC - 87500670"
24V constant voltage LED driver with 100W
The 24V constant voltage LED driver LC 100W 24V lp SNC from the Essence range from Tridonic is suitable for luminaire installation. It has a nominal power of 100 watts. Ideal application areas include cove lighting, facade accent lighting and indirect ceiling lighting.
Dimmable via PWM LED dimmer

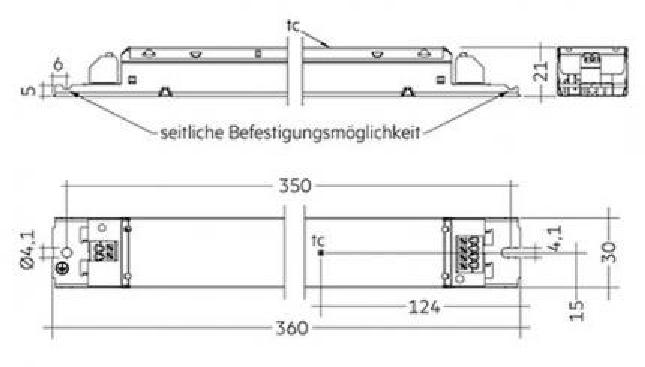

The output voltage has a NF ripple of + - 1.5% (<120 Hz) very good THD performance in wide load range < 5 %. The LED ECG can be dimmed by means of a PWM LED dimmer. There are plug-in terminals for easy wiring. The IP20-protected housing has a small cross section (360 x 30 x 21 mm).
The Tridonic LED driver has a nominal life of 50,000 hours. Tridonic offers a 5-year warranty.
Downloads & Documents
ENEC-Certificate-Tridonic-LED-Driver-LC-100W-24V-lp-SNC-87500670_1592167239_2
ENEC-Zertifikat-Tridonic-LED-Treiber-LC-100W-24V-lp-SNC-87500670_1592167232_3
Konformitaetserklaerung-Tridonic-LED-Treiber-LC-100W-24V-lp-SNC-87500670_1592167232_5
Datenblatt-Tridonic-LED-Treiber-LC-100W-24V-lp-SNC-87500670_1592167232_6
Datasheet-Tridonic-LED-Driver-LC-100W-24V-lp-SNC-87500670_1592167232_8
Declaration-of-Confirmity-Tridonic-LED-Driver-LC-100W-24V-lp-SNC-87500670_1592167232_9
Login
Electrical data
output voltage: | 24 |
---|---|
operating mode: | constant voltage |
rated voltage: | 220-240 V |
lifetime: | 50000 h |
Casing
form type: | linear |
---|---|
max housing temperature (tc-max): | 90 °C |
protection type: | IP20 |
mounting: | Installation |
environment temperature from: | -20 °C |
environment temperature to: | 50 °C |
Photometric data
color: | white |
---|
Logistic data
item category: | LED drivers |
---|
Dimensions & packaging
EAN | 9006210634319 |
---|---|
Length | 360 mm |
Width | 30 mm |
Height | 21 mm |
