Product information "Tridonic LED-Driver LC 10/150-400/40 bDW SC PRE2 - 28002411"
10W basicDIM Wireless dimmable LED ECG

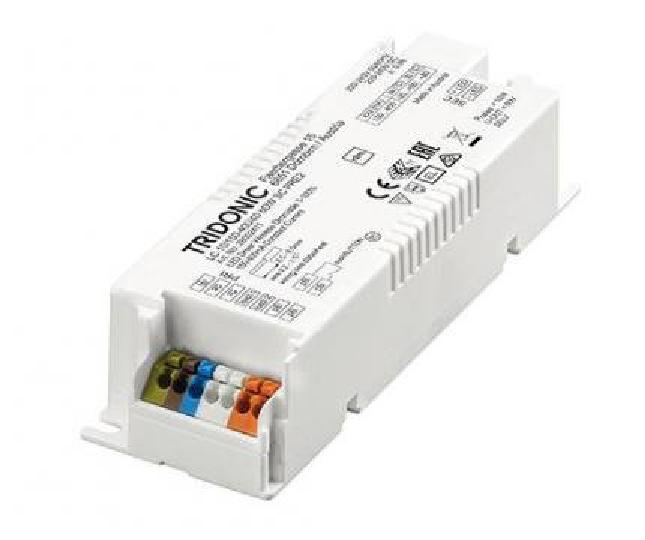

The dimmable constant current LED driver LC 10 / 150-400 / 40 bDW SC PRE2 from the Premium series fby Tridonic is suitable for installation in luminaires of protection class I and II. It has a nominal power of 10 watts. The power consumption in stand-by is <0.35 W, the efficiency up to 82% - so you save energy!
Output current adjustable
The LED driver automatically establishes a wireless communication network with up to 127 nodes. It can be dimmed in a range of 1 - 100% via basicDIM Wireless. The output current can be adjusted between 150 and 400 mA via the ready2mains programmer and I-select 2 plugs. With the help of ready2mains, the LED ECG can also be configured via the network. In addition, 45 ° plug-in terminals are available.
The application-oriented operating window ensures maximum compatibility. In addition, the LED ECG has a constant light output function (CLO) and power-up fading at AC. The service monitor logs certain events. The case has IP20 protection and is made of white polycarbonate.
CASAMBI functionality: lighting control via app
The Tridonic basicDIM Wireless LED driver also has all the CASAMBI functionality: you can integrate it into any CASAMBI Bluetooth network and then conveniently control it via an app on your smartphone or tablet.
The constant current LED ECG is against overtemperature, short circuit, overload, open circuit and at the input voltage range. It also has a reduced surge current gain. It is suitable for emergency lighting systems according to EN50172. The nominal life is 100,000 hours. Tridonic offers a 5-year warranty.
You can download the CASAMBI app here for free:
Downloads & Documents
Datenblatt-Tridonic-LED-Treiber-LC-10-150-400-40-bDW-SC-PRE2-28002411_1592173042_3
ENEC-Certificate-Tridonic-LED-Treiber-LC-10-150-400-40-bDW-SC-PRE2-28002411_1592173035_5
Declaration-of-Confirmity-Tridonic-LED-Treiber-LC-10-150-400-40-bDW-SC-PRE2-28002411_1592173035_6
Konformitaetserklaerung-Tridonic-LED-Treiber-LC-10-150-400-40-bDW-SC-PRE2-28002411_1592173035_7
Datasheet-Tridonic-LED-Treiber-LC-10-150-400-40-bDW-SC-PRE2-28002411_1592173035_8
Electrical data
| output current: | 150, 200, 250, 300, 350, 400 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| lifetime: | 100000 h |
Casing
| max housing temperature (tc-max): | 80 °C |
|---|---|
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -25 °C |
| environment temperature to: | 65 °C |
Photometric data
| color: | white |
|---|---|
| interface: | basicDIM Wireless |
Logistic data
| item category: | LED drivers |
|---|

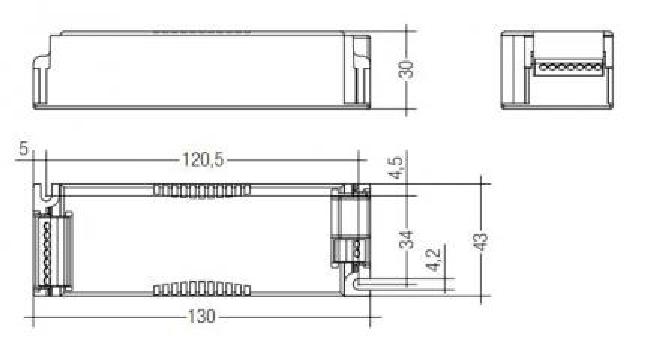

Dimensions & packaging
| EAN | 9006210664880 |
|---|---|
| Length | 130 mm |
| Width | 43 mm |
| Height | 30 mm |
