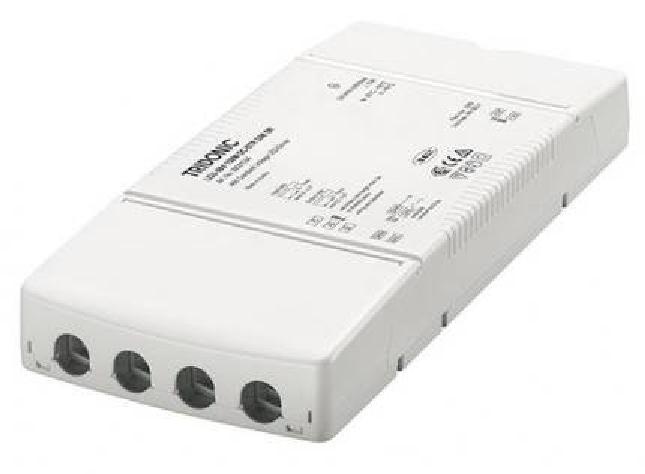

Tridonic LED driver ECG LCU 48V 150W DC-STR DIM SR - 28001044
Tridonic GmbH & Co KG
Tridonic LED driver ECG LCU 48V 150W DC-STR DIM SR - 28001044
Product number:
28001044
Shipping in 5 day(s)
€160.53
Content:
1 Stück
Prices incl. VAT plus shipping costs net €134.90
Product information "Tridonic LED driver ECG LCU 48V 150W DC-STR DIM SR - 28001044"
Independent dimmable DC-String constant voltage LED driver.
- Compatible with other DC-String components
- Integrated DALI to DC powerline communication bridge (PLC)
- one4all interface (corridorFUNCTION, switchDIM, DALI-2, DSI)
- Max. output power 150 W
- Up to 93 % efficiency
- Nominal lifetime up to 50,000 h
- For luminaires of protection class I and protection class II
- 5 years guarantee
Housing properties
- Casing: polycarbonate, white
- Type of protection IP20
Functions
- DC-String compatible
- Intelligent Temperature Guard (overtemperature protection)
- Short-circuit protection
- Overload protection
Downloads & Documents
Electrical data
| output voltage: | 48 |
|---|---|
| operating mode: | constant voltage |
| rated voltage: | 220-240 V |
| lifetime: | 50000 h |
Casing
| form type: | rectangular |
|---|---|
| max housing temperature (tc-max): | 80 °C |
| protection type: | IP20 |
| protection class: | I/II |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| color: | white |
|---|---|
| interface: | switchDIM |
Logistic data
| item category: | LED drivers |
|---|

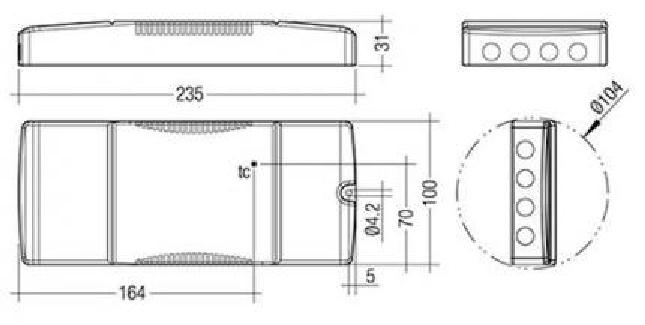

Dimensions & packaging
| EAN | 9006210541914 |
|---|---|
| Length | 235 mm |
| Width | 100 mm |
| Height | 31 mm |
| Weight | 369 g |
