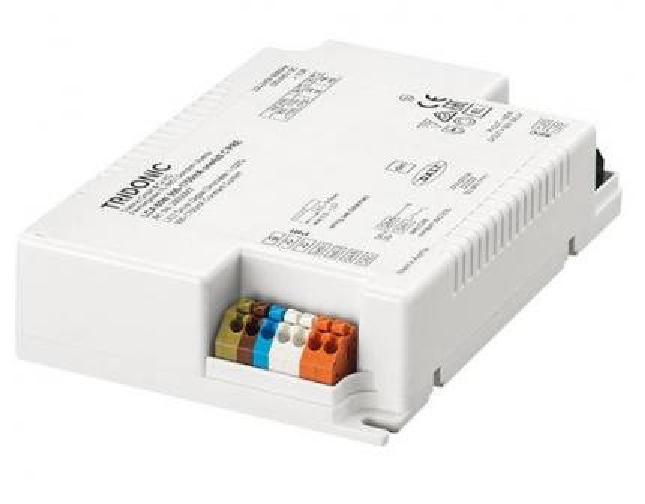

Tridonic LED ballast ECG LCA 60W 900-1750mA one4all C PRE - 28000667
Tridonic GmbH & Co KG
Tridonic LED ballast ECG LCA 60W 900-1750mA one4all C PRE - 28000667
Product number:
28000667
Immediately available
€53.88
Content:
1 Stück
Prices incl. VAT plus shipping costs net €45.28
Product information "Tridonic LED ballast ECG LCA 60W 900-1750mA one4all C PRE - 28000667"
- NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
- Dimmable built-in constant current LED Driver
- Dimming range 1 to 100 %
- For luminaires of protection class I and protection class II
- Output current adjustable between 900 – 1,750 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI
- Max. output power 60 W
- Up to 90 % efficiency
- Power input on stand-by < 0.2 W
- Nominal lifetime up to 100,000 h
- 5 years guarantee
Downloads & Documents
Electrical data
| output current: | 900, 950, 1000, 1050, 1100, 1150, 1200, 1250, 1300, 1350, 1400, 1450, 1500, 1550, 1600, 1650, 1700, 1750 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| terminal type: | Push-in CAGE CLAMP® |
| lifetime: | 100000 h |
Casing
| max housing temperature (tc-max): | 85 °C |
|---|---|
| protection type: | IP00 |
| mounting: | Installation |
| protection class: | I/II |
| environment temperature from: | -25 °C |
| environment temperature to: | 55 °C |
Photometric data
| color: | white |
|---|---|
| interface: | corridor function |
Logistic data
| item category: | LED drivers |
|---|

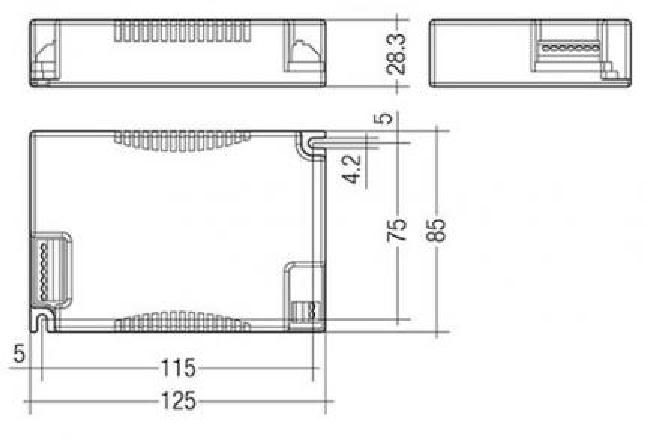

Dimensions & packaging
| EAN | 9006210523439 |
|---|---|
| Length | 125 mm |
| Width | 85 mm |
| Height | 28 mm |
| Weight | 207 g |
