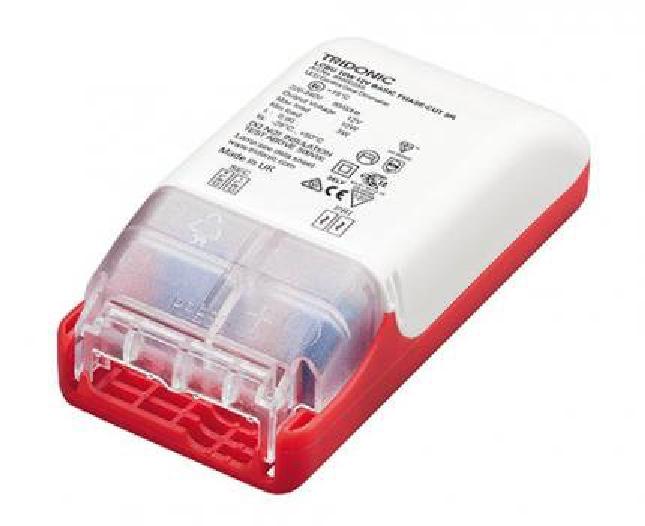

Tridonic LCBU 10W 12V BASIC phase-cut sr - 89800289
Product information "Tridonic LCBU 10W 12V BASIC phase-cut sr - 89800289"
Screw terminal
Compact dimensions
Short-circuit protection
SELV
Type of protection IP20
Overload protection
Connecting cable, wire cross-section 0.5 – 2.5 mm²
No-load protection
Nominal life-time of 50,000 h (at max ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h)
Casing: polycarbonate, white
Dimming range typ. 5 to 100 % (depending on dimmer)
Output power 10 W
12 V DC output voltage
Dimmable via leading edge and trailing edge phase dimmers
Compact dimensions
Short-circuit protection
SELV
Type of protection IP20
Overload protection
Connecting cable, wire cross-section 0.5 – 2.5 mm²
No-load protection
Nominal life-time of 50,000 h (at max ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h)
Casing: polycarbonate, white
Dimming range typ. 5 to 100 % (depending on dimmer)
Output power 10 W
12 V DC output voltage
Dimmable via leading edge and trailing edge phase dimmers
Downloads & Documents
Electrical data
| output voltage: | 12 |
|---|---|
| operating mode: | constant voltage |
| rated voltage: | 220-240 V |
Casing
| max housing temperature (tc-max): | 75 °C |
|---|---|
| protection type: | IP20 |
| environment temperature from: | -40 °C |
| environment temperature to: | 85 °C |
Photometric data
| color: | white |
|---|---|
| interface: | phase cut and gating |
Logistic data
| item category: | LED drivers |
|---|

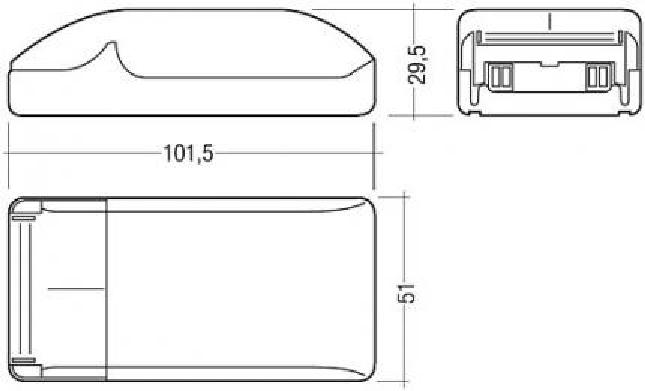

Dimensions & packaging
| EAN | 9006210493794 |
|---|---|
| Length | 102 mm |
| Width | 51 mm |
| Height | 30 mm |
| Weight | 65 g |
