Tridonic GmbH & Co KG

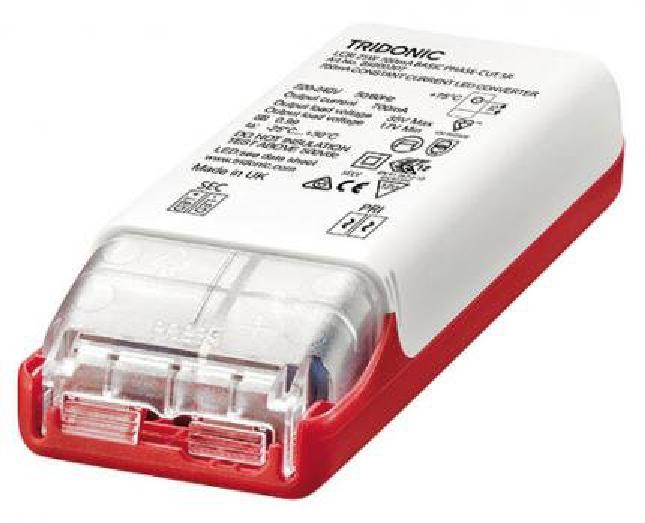

Tridonic LCBI 25W 700mA BASIC phase-cut SR - 89800307
Product number:
89800307
Tridonic GmbH & Co KG
Tridonic LCBI 25W 700mA BASIC phase-cut SR - 89800307
Product number:
89800307
Immediately available
That's why you should buy this product now
- High Quality at a low price
- 4.8 out of 5 ⭐⭐⭐⭐⭐ on Google
- Short delivery times for stock items
€29.05
Content:
1 Stück
Prices incl. VAT plus shipping costs net €24.41
Product information "Tridonic LCBI 25W 700mA BASIC phase-cut SR - 89800307"
Screw terminal
Compact dimensions
Short-circuit protection
SELV
Type of protection IP20
Overload protection
Connecting cable, wire cross-section 0.5 – 2.5 mm²
Nominal life-time up to 50,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h)
No-load protection
Casing: polycarbonate, white
Output dimmed analogue (current amplitude)
Dimming range typ. 5 to 100 % (depending on dimmer)
Output power 25 W
Dimmable via leading edge and trailing edge phase dimmers
700 mA output current
Compact dimensions
Short-circuit protection
SELV
Type of protection IP20
Overload protection
Connecting cable, wire cross-section 0.5 – 2.5 mm²
Nominal life-time up to 50,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h)
No-load protection
Casing: polycarbonate, white
Output dimmed analogue (current amplitude)
Dimming range typ. 5 to 100 % (depending on dimmer)
Output power 25 W
Dimmable via leading edge and trailing edge phase dimmers
700 mA output current
Downloads & Documents
Login
Electrical data
| output current: | 700 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
Casing
| max housing temperature (tc-max): | 75 °C |
|---|---|
| protection type: | IP20 |
| environment temperature from: | -40 °C |
| environment temperature to: | 85 °C |
Photometric data
| color: | white |
|---|---|
| interface: | phase cut and gating |
Logistic data
| item category: | LED drivers |
|---|

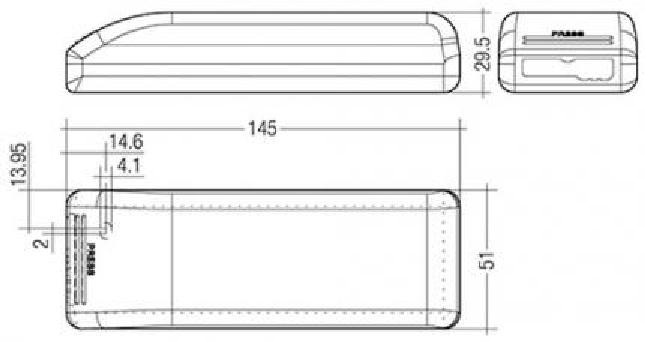

Dimensions & packaging
| EAN | 9006210501604 |
|---|---|
| Length | 145 mm |
| Width | 51 mm |
| Height | 30 mm |
| Weight | 115 g |
