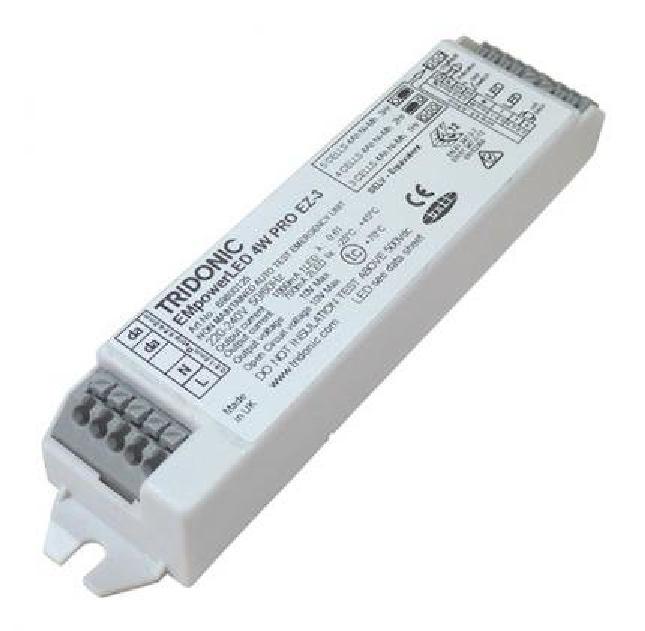

Tridonic EMpowerLED 4W PRO SCREW - FIX - 89800126
Product information "Tridonic EMpowerLED 4W PRO SCREW - FIX - 89800126"
Deep discharge protection
Polarity reversal protection for battery
High-temperature cells
Low-profile casing (21 x 30 mm cross-section)
NiCd or NiMH batteries
Electronic multi-level charge system
{nobullet} Tests:
Status of the battery
Function test
Duration test
Two-colour status display LED
Addressing function, patented (“EZ easy addressing”)
Constant current mode
With either screw or clip fastening (clip-fix)
1, 2 or 3 h rated duration
Selectable operating time (jumper)
Output power limitation
Automatic restart after LED replacement
SELV classified (outputs powerLED, battery, status LED, test switch)
Emergency lighting LEDs available
Status of the LED
Emergency lighting LED Driver with DALI interface and automatic test function
DALI interface for controlled testing and monitoring
Short-circuit-proof battery connection
Charge condition
Non maintained operation
SELV for output voltage < 60 V DC
Very low energy consumption from the battery after activation of the deep discharge protection
Polarity reversal protection for battery
High-temperature cells
Low-profile casing (21 x 30 mm cross-section)
NiCd or NiMH batteries
Electronic multi-level charge system
{nobullet} Tests:
Status of the battery
Function test
Duration test
Two-colour status display LED
Addressing function, patented (“EZ easy addressing”)
Constant current mode
With either screw or clip fastening (clip-fix)
1, 2 or 3 h rated duration
Selectable operating time (jumper)
Output power limitation
Automatic restart after LED replacement
SELV classified (outputs powerLED, battery, status LED, test switch)
Emergency lighting LEDs available
Status of the LED
Emergency lighting LED Driver with DALI interface and automatic test function
DALI interface for controlled testing and monitoring
Short-circuit-proof battery connection
Charge condition
Non maintained operation
SELV for output voltage < 60 V DC
Very low energy consumption from the battery after activation of the deep discharge protection
Downloads & Documents
Electrical data
| rated voltage: | 220-240 V |
|---|---|
| system power: | 4 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| max housing temperature (tc-max): | 70 °C |
| protection type: | IP20 |
| environment temperature from: | -25 °C |
| environment temperature to: | 45 °C |
Photometric data
| sensor: | no |
|---|---|
| color: | white |
| solar panel: | no |
Logistic data
| item category: | LED drivers |
|---|

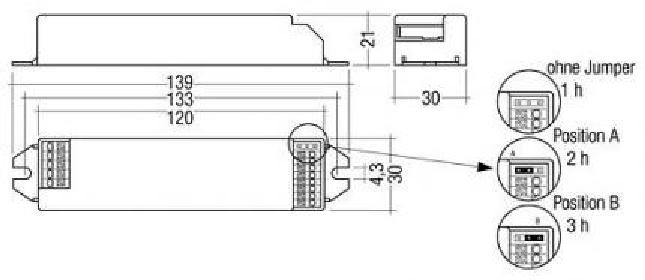

Dimensions & packaging
| EAN | 9006210461441 |
|---|---|
| Length | 139 mm |
| Width | 30 mm |
| Height | 21 mm |
| Weight | 101 g |
