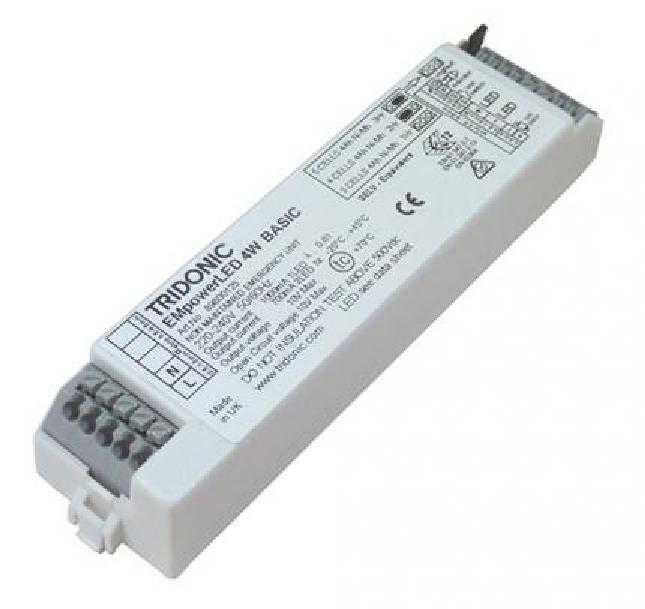

Tridonic EMpowerLED 4W BASIC CLIP-FIX - 89800121
Product information "Tridonic EMpowerLED 4W BASIC CLIP-FIX - 89800121"
Green charge status display LED
Deep discharge protection
Polarity reversal protection for battery
High-temperature cells
Low-profile casing (21 x 30 mm cross-section)
NiCd or NiMH batteries
Electronic multi-level charge system
Emergency lighting LED Driver for manual testing
Constant current mode
With either screw or clip fastening (clip-fix)
1, 2 or 3 h rated duration
Selectable operating time (jumper)
Output power limitation
Automatic restart after LED replacement
SELV classified (outputs powerLED, battery, status LED, test switch)
Emergency lighting LEDs available
Short-circuit-proof battery connection
Non maintained operation
SELV for output voltage < 60 V DC
Very low energy consumption from the battery after activation of the deep discharge protection
Deep discharge protection
Polarity reversal protection for battery
High-temperature cells
Low-profile casing (21 x 30 mm cross-section)
NiCd or NiMH batteries
Electronic multi-level charge system
Emergency lighting LED Driver for manual testing
Constant current mode
With either screw or clip fastening (clip-fix)
1, 2 or 3 h rated duration
Selectable operating time (jumper)
Output power limitation
Automatic restart after LED replacement
SELV classified (outputs powerLED, battery, status LED, test switch)
Emergency lighting LEDs available
Short-circuit-proof battery connection
Non maintained operation
SELV for output voltage < 60 V DC
Very low energy consumption from the battery after activation of the deep discharge protection
Downloads & Documents
Electrical data
| rated voltage: | 220-240 V |
|---|---|
| system power: | 4 |
Casing
| max housing temperature (tc-max): | 70 °C |
|---|---|
| protection type: | IP20 |
| environment temperature from: | -25 °C |
| environment temperature to: | 45 °C |
Logistic data
| item category: | LED drivers |
|---|

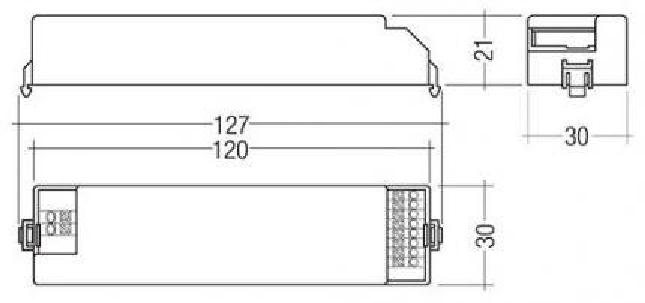

Dimensions & packaging
| EAN | 9006210460796 |
|---|---|
| Length | 127 mm |
| Width | 30 mm |
| Height | 21 mm |
| Weight | 101 g |
