Tridonic EMpowerLED 1W ST CLIP-FIX - 89899867
Product information "Tridonic EMpowerLED 1W ST CLIP-FIX - 89899867"
Low-profile casing (21 x 30 mm)
Deep discharge protection
Polarity reversal protection for battery
“Rest mode” function
Electronic multi-level charge system
Simple set-up
Status of the battery
Function test
Duration test
Two-colour status display LED
Mains and emergency operation
Constant current mode
With either screw or clip fastening (clip-fix)
1, 2 or 3 h rated duration
Selectable operating time (jumper)
Output power limitation
Automatic restart after LED replacement
SELV classified (outputs powerLED, battery, status LED, test switch)
Emergency lighting LEDs available
NiMH batteries
Cs cells
Emergency lighting LED Driver with selftest function
Selftest as per IEC 62034
Status of the LED
{nobullet} Selftest:
Short-circuit-proof battery connection
Charge condition
High-temperature cells 2 Ah
SELV for output voltage < 60 V DC
Very low energy consumption from the battery after activation of the deep discharge protection
Deep discharge protection
Polarity reversal protection for battery
“Rest mode” function
Electronic multi-level charge system
Simple set-up
Status of the battery
Function test
Duration test
Two-colour status display LED
Mains and emergency operation
Constant current mode
With either screw or clip fastening (clip-fix)
1, 2 or 3 h rated duration
Selectable operating time (jumper)
Output power limitation
Automatic restart after LED replacement
SELV classified (outputs powerLED, battery, status LED, test switch)
Emergency lighting LEDs available
NiMH batteries
Cs cells
Emergency lighting LED Driver with selftest function
Selftest as per IEC 62034
Status of the LED
{nobullet} Selftest:
Short-circuit-proof battery connection
Charge condition
High-temperature cells 2 Ah
SELV for output voltage < 60 V DC
Very low energy consumption from the battery after activation of the deep discharge protection
Downloads & Documents
Electrical data
| rated voltage: | 220-240 V |
|---|---|
| system power: | 1 |
Casing
| max housing temperature (tc-max): | 70 °C |
|---|---|
| protection type: | IP20 |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Logistic data
| item category: | LED drivers |
|---|

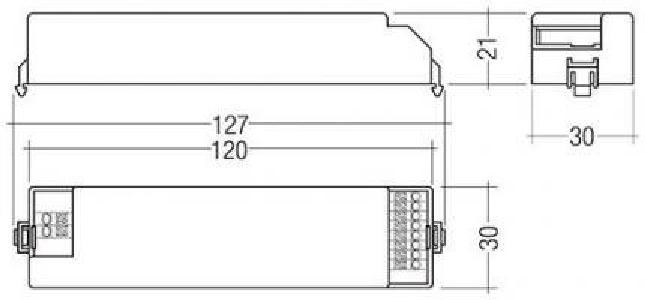

Dimensions & packaging
| EAN | 9006210249803 |
|---|---|
| Length | 127 mm |
| Width | 30 mm |
| Height | 21 mm |
| Weight | 101 g |
