Tridonic EMpowerLED 1W BASIC SCREW-FIX - 89899858
Product information "Tridonic EMpowerLED 1W BASIC SCREW-FIX - 89899858"
Green charge status display LED
Deep discharge protection
Polarity reversal protection for battery
Low-profile casing (21 x 30 mm cross-section)
Electronic multi-level charge system
Emergency lighting LED Driver for manual testing
Mains and emergency operation
Constant current mode
With either screw or clip fastening (clip-fix)
1, 2 or 3 h rated duration
Selectable operating time (jumper)
Output power limitation
Automatic restart after LED replacement
SELV classified (outputs powerLED, battery, status LED, test switch)
Emergency lighting LEDs available
NiMH batteries
Cs cells
Short-circuit-proof battery connection
High-temperature cells 2 Ah
SELV for output voltage < 60 V DC
Very low energy consumption from the battery after activation of the deep discharge protection
Deep discharge protection
Polarity reversal protection for battery
Low-profile casing (21 x 30 mm cross-section)
Electronic multi-level charge system
Emergency lighting LED Driver for manual testing
Mains and emergency operation
Constant current mode
With either screw or clip fastening (clip-fix)
1, 2 or 3 h rated duration
Selectable operating time (jumper)
Output power limitation
Automatic restart after LED replacement
SELV classified (outputs powerLED, battery, status LED, test switch)
Emergency lighting LEDs available
NiMH batteries
Cs cells
Short-circuit-proof battery connection
High-temperature cells 2 Ah
SELV for output voltage < 60 V DC
Very low energy consumption from the battery after activation of the deep discharge protection
Downloads & Documents
Electrical data
| rated voltage: | 220-240 V |
|---|---|
| system power: | 1 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| max housing temperature (tc-max): | 70 °C |
| protection type: | IP20 |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| sensor: | no |
|---|---|
| color: | white |
| solar panel: | no |
Logistic data
| item category: | LED drivers |
|---|

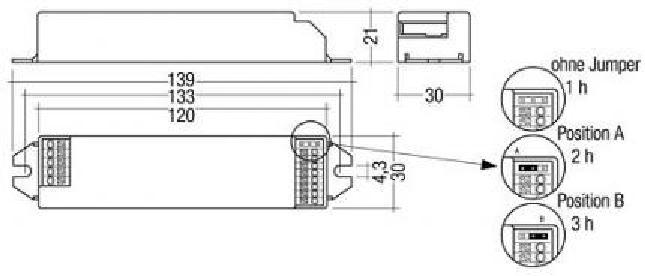

Dimensions & packaging
| EAN | 9006210249629 |
|---|---|
| Length | 139 mm |
| Width | 30 mm |
| Height | 21 mm |
| Weight | 101 g |
