Tridonic emergency light LED driver EM converterLED BASIC 203 NiCd/NiMH 50V - 89800559
Tridonic emergency light LED driver EM converterLED BASIC 203 NiCd/NiMH 50V - 89800559
Immediately available
That's why you should buy this product now
- High Quality at a low price
- 4.8 out of 5 ⭐⭐⭐⭐⭐ on Google
- Short delivery times for stock items
€47.58
Prices incl. VAT plus shipping costs net €39.98
Product information "Tridonic emergency light LED driver EM converterLED BASIC 203 NiCd/NiMH 50V - 89800559"
Emergency light ECG (1 or 3 hours of operation)
The EM converterLED LED BASIC 203 NiCd/NiMH 50V emergency lighting LED driver from Tridonic's BASIC series is designed for installation in LED modules with a forward voltage of 10 – 54 V. It has SELV for an output voltage <60 V DC. The LED driver is used in non maintained operation and has a rated duration of 1 or 3 hours (selectable with plug). The LED ECG has a "low profile" housing (21 x 30 mm cross section).
The Tridonic emergency lighting LED driver is compatible with all dimmable and non-dimmable constant current LED drivers. Its 3-pole technology initiates a 2-pole LED module changeover and delayed power switching for the LED driver. If the LED load is outside the allowable range, the output automatically shuts off.
Compatbile with NiCd and NiMH cells
The emergency light ECG is compatible with NiCd and NiMH high temperature cells. The emergency light ECG has an electronic charge system, a deep discharge protection, a short-circuit proof battery connection and a polarity reversal protection for battery. In addition, you benefit from a constant output power and maximum light output for all LED modules.
Tridonic offers a 5-year warranty on the LED driver. The batteries have an expected life of 4 years and 1-year warranty.
Downloads & Documents
ENEC-Certificate-Tridonic-emergency-light-LED-driver-EM-converterLED-BASIC-203-NiCd-NiMH-50V-89800559_1592166164_1
Datenblatt-Tridonic-Notlicht-LED-Treiber-EM-converterLED-BASIC-203-NiCd-NiMH-50V-89800559_1592166164_2
Datasheet-Tridonic-emergency-Tridonic-emergency-light-LED-driver-EM-converterLED-BASIC-203-NiCd-NiMH-50V-89800559_1592166164_3
ENEC-Zertifikat-Tridonic-Notlicht-LED-Treiber-EM-converterLED-BASIC-203-NiCd-NiMH-50V-89800559_1592166164_4
Login
Electrical data
| rated voltage: | 220-240 V |
|---|
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -5 °C |
| environment temperature to: | 55 °C |
Photometric data
| dimmable: | yes |
|---|---|
| color: | white |
Logistic data
| item category: | LED drivers |
|---|

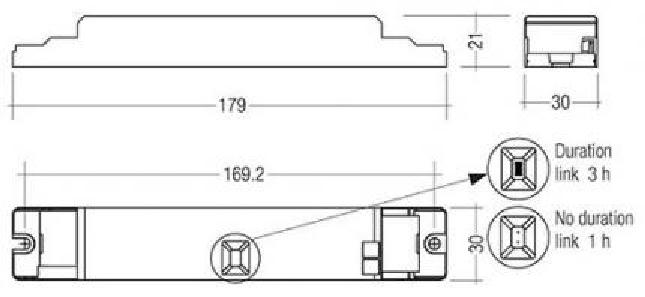

Dimensions & packaging
| EAN | 9006210648934 |
|---|---|
| Length | 179 mm |
| Width | 30 mm |
| Height | 21 mm |
