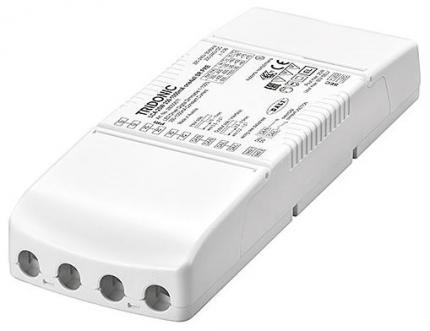

Tridonic ECG-LED Tridonic LCA 25W 350-1050mA one4all SR PRE - 28000671
Tridonic GmbH & Co KG
Tridonic ECG-LED Tridonic LCA 25W 350-1050mA one4all SR PRE - 28000671
Product number:
28000671
Immediately available
€46.85
Content:
1 Stück
Prices incl. VAT plus shipping costs net €39.37
Product information "Tridonic ECG-LED Tridonic LCA 25W 350-1050mA one4all SR PRE - 28000671"
The Tridonic LCA 25W 350-1050mA one4all SR PRE is an independent dimmable LED driver.The output current is adjustable with the ready2mains programmer, the I-select 2 plugs or via DALI between 350 - 1,050 mA. A max. Output power of 25 W with an efficiency of up to 90% speaks for the EVG-LED Tridonic LCA 25W 350-1050mA one4all SR PRE. The power consumption is <0.1 W in stand-by. The LED driver Tridonic LCA 25W 350-1050mA one4all SR PRE has the dimming interfaces one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION) + ready2mains (configuration and dimming via mains) and has a dimming range of 1 - 100%. The Tridonic LCA 25W 350-1050mA one4all SR PRE LED driver has various protection functions for: overtemperature, short circuit, overload, no-load, input voltage range, reduced surge current gain. It is also suitable for safety lighting systems according to EN 50172. This is rounded off by a lifetime of up to 100,000 h and a 5-year warranty.
Downloads & Documents
Electrical data
| output current: | 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000, 1050 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| lifetime: | 100000 h |
Casing
| max housing temperature (tc-max): | 80 °C |
|---|---|
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -25 °C |
| environment temperature to: | 60 °C |
Photometric data
| color: | white |
|---|---|
| interface: | ready2mains |
Logistic data
| item category: | LED drivers |
|---|

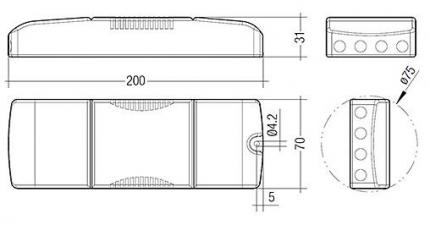

Dimensions & packaging
| EAN | 9006210523712 |
|---|---|
| Length | 200 mm |
| Width | 70 mm |
| Height | 31 mm |
| Weight | 176 g |
