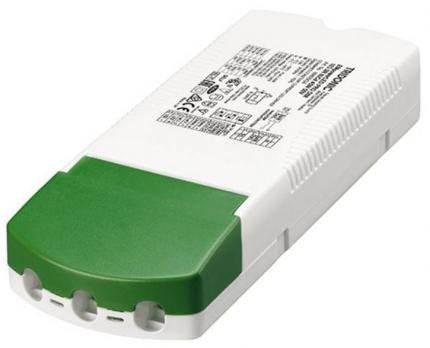

The trigonic EMpowerLED PRO DIM 103 SR NiMH 45W 50V is an independent dimmable constant current LED driver with integrated emergency unit and automatic test function.
The driver is suitable for LED modules with a forward voltage of 20 - 50 V.
The output power varies between 6 - 45 W.
The output current can be set with the I-SELECT 2 PLUG in 25 mA increments or with DALI in increments of 1 mA between 350 - 1,400 mA.
An automatic shutdown of the output is also available when the forward voltage of the LED is out of range.
The LED driver has the dimming interfaces one4all (DALI DT 1 & 6, DSI, switchDIM, corridorFUNCTION) and has a dimming range of 1 - 100%.
Various protection functions for eg: overtemperature, short circuit, overload, no-load, input voltage range, reduced surge current gain are also available.
This is rounded off by a lifetime of up to 100,000 h and a 5-year warranty.
A NiMH battery is used as a high-temperature cell (D, Cs or LA cell) for independent use from the grid.
To simplify the connection of the batteries the driver has a polarity protection.
The batteries have an expected lifetime of 4 years and 1 year warranty.
