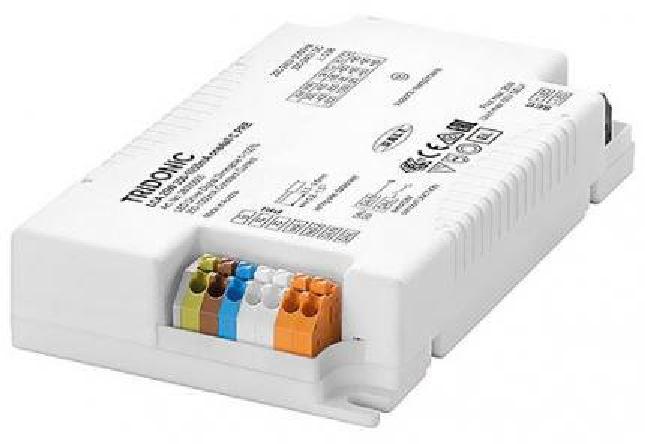

Tridonic ECG-LED LCA 45W 500-1400mA one4all C - 28000666
Tridonic GmbH & Co KG
Tridonic ECG-LED LCA 45W 500-1400mA one4all C - 28000666
Product number:
28000666
Immediately available
€56.23
Content:
1 Stück
Prices incl. VAT plus shipping costs net €47.25
Product information "Tridonic ECG-LED LCA 45W 500-1400mA one4all C - 28000666"
Dimming range 1 to 100 %
Type of protection IP20
5-year guarantee
Casing: polycarbonate, white
Dimmable built-in LED Driver
Suitable for emergency escapge lighting systems acc. to EN 50172
Power-up fading at AC
Nominal life-time up to 100,000 h
Power input on standby < 0.15 W
one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION)
ready2mains (configuration and dimming via mains)
Terminal blocks: 0° push terminals
Adjustable output current (DALI, ready2mains, I-select 2)
Constant light output function (CLO)
Configurable via ready2mains
Service monitor to log certain events
Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
Application-oriented operating window for maximum compatibility
Best energy savings due to low standby losses and high efficiency
Flexible configuration via DALI, ready2mains and I-select 2
Reliability proven by life-time up to 100,000 h and 5-year guarantee
For linear/area lighting in office applications
Max. output power 45 W
Up to 90 % efficiency
Output current adjustable between 500 – 1,400 mA
Type of protection IP20
5-year guarantee
Casing: polycarbonate, white
Dimmable built-in LED Driver
Suitable for emergency escapge lighting systems acc. to EN 50172
Power-up fading at AC
Nominal life-time up to 100,000 h
Power input on standby < 0.15 W
one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION)
ready2mains (configuration and dimming via mains)
Terminal blocks: 0° push terminals
Adjustable output current (DALI, ready2mains, I-select 2)
Constant light output function (CLO)
Configurable via ready2mains
Service monitor to log certain events
Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
Application-oriented operating window for maximum compatibility
Best energy savings due to low standby losses and high efficiency
Flexible configuration via DALI, ready2mains and I-select 2
Reliability proven by life-time up to 100,000 h and 5-year guarantee
For linear/area lighting in office applications
Max. output power 45 W
Up to 90 % efficiency
Output current adjustable between 500 – 1,400 mA
Downloads & Documents
Electrical data
| output current: | 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000, 1050, 1100, 1150, 1200, 1250, 1300, 1350, 1400 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| terminal type: | Push-in CAGE CLAMP® |
| lifetime: | 100000 h |
Casing
| max housing temperature (tc-max): | 95 °C |
|---|---|
| protection type: | IP20 |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| setting type: | resistors/programming |
|---|---|
| color: | white |
| interface: | DALI |
Logistic data
| item category: | LED drivers |
|---|

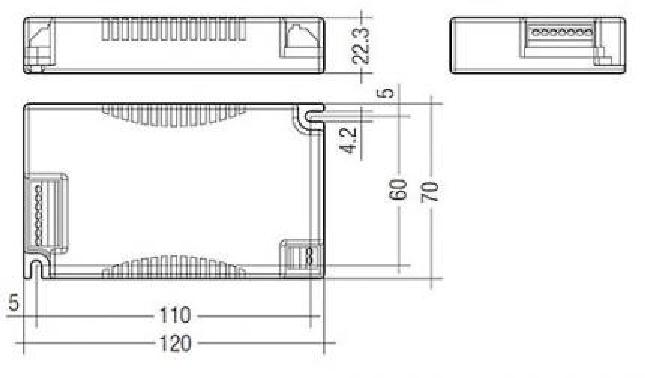

Dimensions & packaging
| EAN | 9006210523361 |
|---|---|
| Length | 120 mm |
| Width | 70 mm |
| Height | 21 mm |
| Weight | 158 g |
