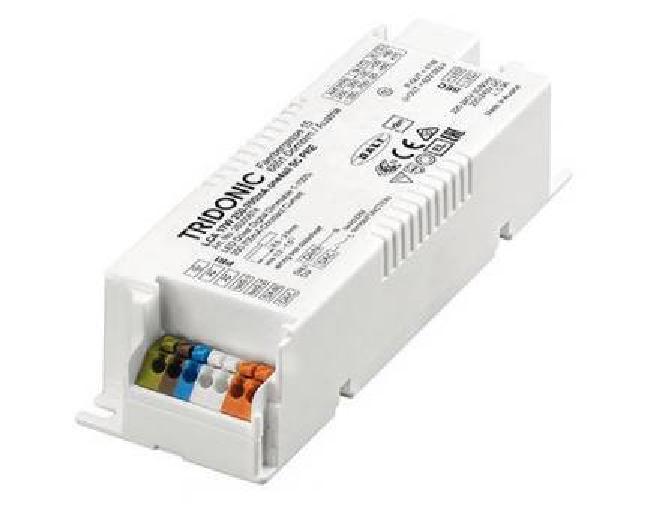

Tridonic ECG-LED LCA 17W 250-700mA one4all SC PRE - 28000674
Tridonic GmbH & Co KG
Tridonic ECG-LED LCA 17W 250-700mA one4all SC PRE - 28000674
Product number:
28000674
Immediately available
€47.75
Content:
1 Stück
Prices incl. VAT plus shipping costs net €40.13
Product information "Tridonic ECG-LED LCA 17W 250-700mA one4all SC PRE - 28000674"
Output current can be set between 250-700 mA with ready2mains ™ Programmer, I select 2 Gauges or DALI Max. Output power 17 W Up to 86% efficiency Power consumption in standby <0.2 W Dimming range 1 - 100% Dimmable by: one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains ™ (Configure and dimming via network) Nominal service life of up to 100,000 h Adjustable output current (DALI, ready2mains ™, I-select 2) Constant Light Output function (CLO) Power-up fading at AC Configuring via ready2mains ™ Service Monitor logs certain events Protection functions (over-temperature, short-circuit, overload, idling, input voltage range, reduced surge current gain) Suitable for emergency lighting systems as per EN 50172
Downloads & Documents
Electrical data
| output current: | 250, 300, 350, 400, 450, 500, 550, 600, 650, 700 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| terminal type: | Push-in CAGE CLAMP® |
| lifetime: | 100000 h |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 80 °C |
| protection type: | IP20 |
| environment temperature from: | -25 °C |
| environment temperature to: | 60 °C |
Photometric data
| setting type: | resistors/programming |
|---|---|
| color: | white |
| interface: | corridor function |
Logistic data
| item category: | LED drivers |
|---|

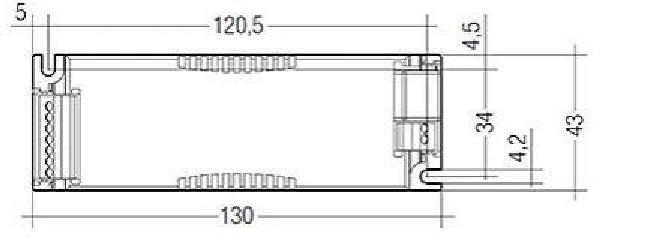

Dimensions & packaging
| EAN | 9006210523927 |
|---|---|
| Length | 130 mm |
| Width | 43 mm |
| Height | 30 mm |
| Weight | 120 g |
