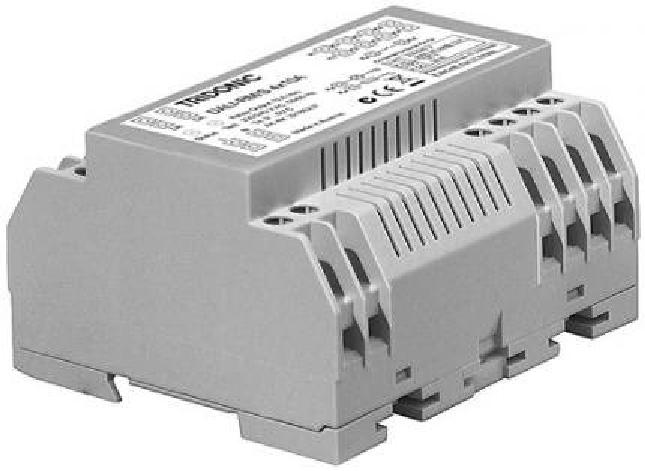

Tridonic DALI-RM/S 4x10A - 22185237
Product information "Tridonic DALI-RM/S 4x10A - 22185237"
For installation in switching cabinets
Status LED for indicating the operating status
Switching of 4 independent and potential free contacts via DALI
Max. switching current per contact: 10 A at ohmic load (cos Φ = 1)
1 DALI address per switching contact
Test switch for installation test
5-year guarantee
Status LED for indicating the operating status
Switching of 4 independent and potential free contacts via DALI
Max. switching current per contact: 10 A at ohmic load (cos Φ = 1)
1 DALI address per switching contact
Test switch for installation test
5-year guarantee
Downloads & Documents
Electrical data
| rated voltage: | 230-240 V |
|---|
Casing
| protection type: | IP20 |
|---|---|
| environment temperature to: | 50 °C |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | light management |
|---|

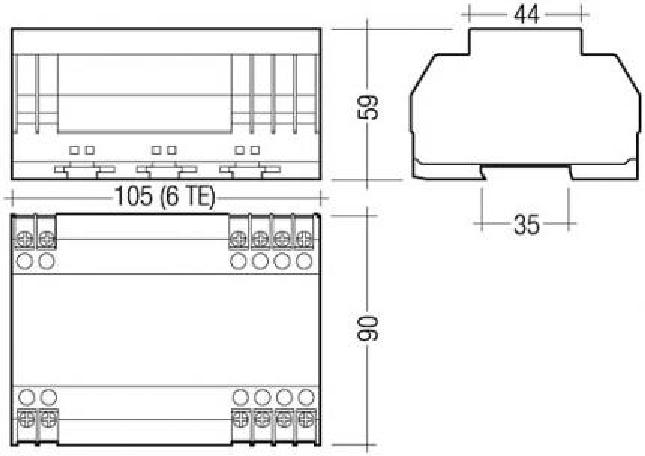

Dimensions & packaging
| EAN | 9120044932530 |
|---|---|
| Length | 105 mm |
| Width | 90 mm |
| Height | 59 mm |
| Weight | 460 g |
