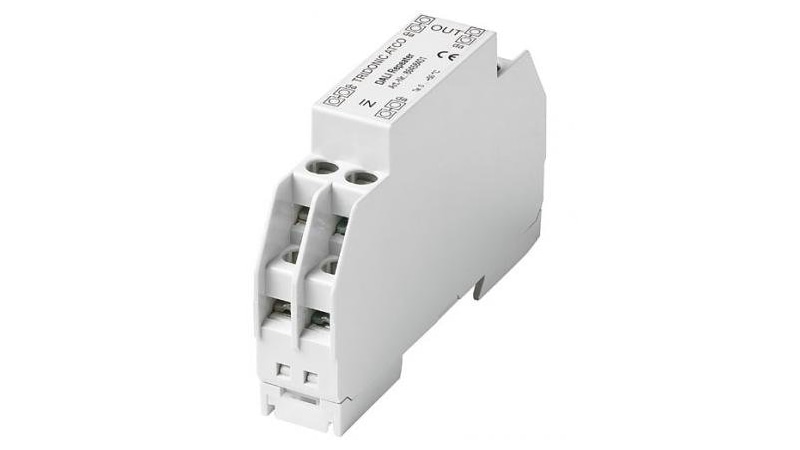

Tridonic DALI REPEATER - 86458401
Product information "Tridonic DALI REPEATER - 86458401"
Power supply via DALI line
For amplifying the DALI signal
For extending the DALI line length from 300 to 600 m
A star-type network with multiple DALI repeater's can be set up
For installation in switching cabinets
Because of the signal delay it is not possible to connect multiple DALI repeaters in series (no cascading)
There is no increase in the maximum number of DALI units. A maximum of 64 DALI addresses can be configured in a DALI circuit (main and subordinate circuit)
Because of the electrical isolation between the main circuit and the subordinate circuit an additional DALI power supply unit is needed for each DALI repeater
5-year guarantee
For amplifying the DALI signal
For extending the DALI line length from 300 to 600 m
A star-type network with multiple DALI repeater's can be set up
For installation in switching cabinets
Because of the signal delay it is not possible to connect multiple DALI repeaters in series (no cascading)
There is no increase in the maximum number of DALI units. A maximum of 64 DALI addresses can be configured in a DALI circuit (main and subordinate circuit)
Because of the electrical isolation between the main circuit and the subordinate circuit an additional DALI power supply unit is needed for each DALI repeater
5-year guarantee
Downloads & Documents
Casing
| ballproof: | no |
|---|---|
| protection type: | IP20 |
| environment temperature from: | -20 °C |
| environment temperature to: | 70 °C |
Photometric data
| sensor: | no |
|---|
Logistic data
| item category: | light management |
|---|

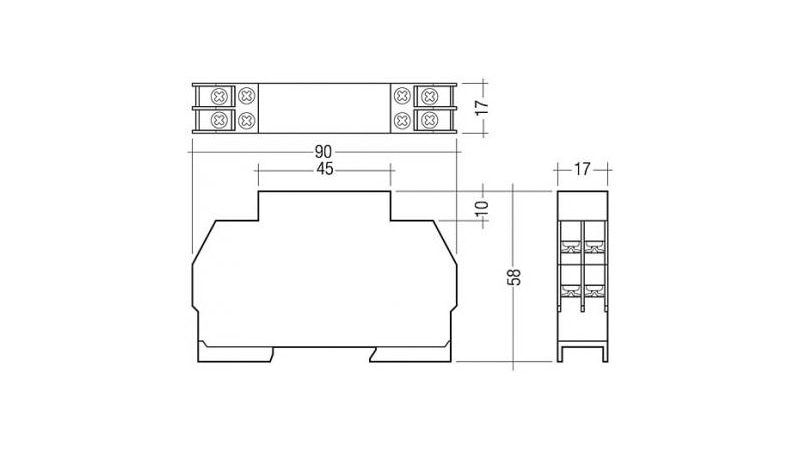

Dimensions & packaging
| EAN | 7612696128437 |
|---|---|
| Length | 90 mm |
| Width | 17 mm |
| Height | 58 mm |
| Weight | 65 g |
