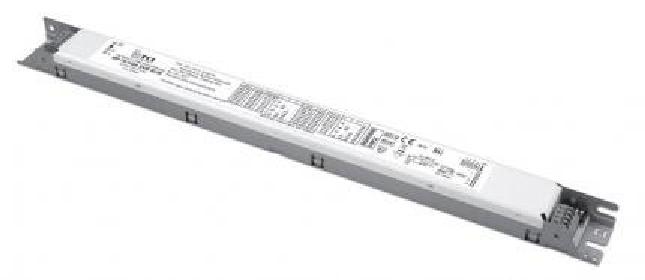

TCI LED-Treiber MP 70/1400 SVM SLIM - 127560
Product information "TCI LED-Treiber MP 70/1400 SVM SLIM - 127560"
70W constant current LED ECG for built-in use
The constant current LED driver MP 70/1400 SVM SLIM from TCI is suitable for installation in luminaires of protection class I. It has a nominal output of up to 70 watts. A luminaire enclosure is necessary for protection against accidental contact with live parts.
Output current adjustable via DIP switches
The input and output terminals are on the opposite sides (wire cross-section up to 1.5mm2 / AWG16). The LED ECG has an Active Power Corrector. The current regulation including temperature variations is + - 5/7 %. The output current can be adjusted via DIP switches.
The TCI LED driver MP 70/1400 SVM SLIM is protected against overheating and short circuits, mains voltage spikes and overload.
Electrical data
| number of channels: | 1 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| conformity: | CE, ENEC |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | linear |
| max housing temperature (tc-max): | 80 °C |
| mounting: | Installation |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | no |
| color: | white |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|

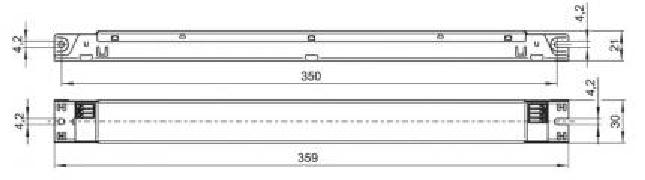

Dimensions & packaging
| EAN | 8010703333000 |
|---|---|
| Length | 30 mm |
| Width | 360 mm |
| Height | 21 mm |
TCI
TCI TELECOMUNICAZIONI ITALIA S.R.L.
Via Parma 14
21047 Saronno
IT
tci@tci.it
www.tci.it/en/
