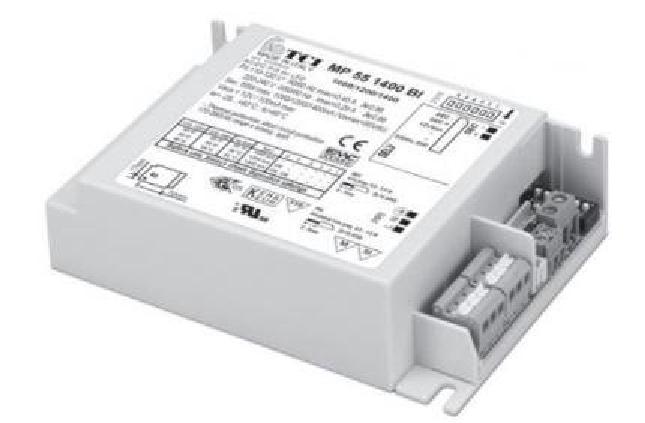

Product information "TCI LED-Treiber MP 55 HC BI - 122208"
55W constant current LED ECG for built-in use
The IP20-protected constant current LED driver MP 55 HC BI is suitable for indoor installation in luminaires of protection class I. It has a nominal output of up to 55 watts.
The input and output terminal blocks are on the same side (wire cross-section up to 1.5-2.5 mm2 / AWG15-AWG13). The LED ECG can be secured with slot for screws.
Output current adjustable via DIP switches
The LED ECG has an Active Power Correcter and a 12V auxiliary output for max. 100 mA. The output current can be adjusted via DIP switches. The current regulation is + - 5% including temperature variations.
The TCI MP 55 HC BI is protected against overheating, short circuits, mains voltage spikes and overload. It also has a thermal protection acc. EN 61347 C.5. automatically reversible.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 110-127 V |
| conformity: | CE, ENEC |
| system power: | 45 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | rectangular |
| max housing temperature (tc-max): | 85 °C |
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | no |
| color: | white |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|
Dimensions & packaging
| EAN | 8010703307230 |
|---|---|
| Length | 76 mm |
| Width | 110 mm |
| Height | 30 mm |
| Weight | 220 g |
