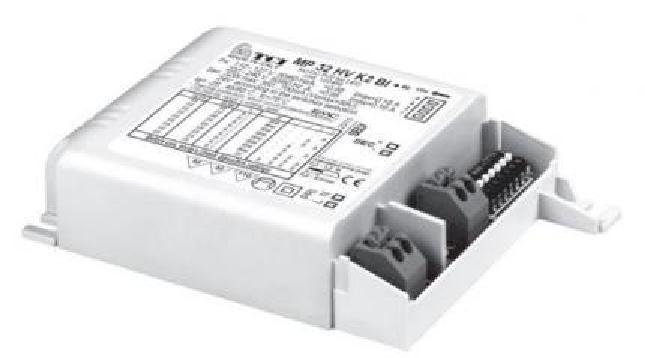

TCI LED-Treiber MP 32 HV BI - 122456
Product information "TCI LED-Treiber MP 32 HV BI - 122456"
32W constant current/voltage LED driver
The electronic ballast for LED modules MP 32 HV BI from TCI is suitable for installation in luminaires of protection class I and II. The rated power is up to 32 watts.
The input and output terminals are mounted on opposite sides (wire cross-section up to 1.5 mm2 / AWG15). The LED ECG is supplied with a terminal cover and a cable retainer. It is secured with a slot for screws.
Output current adjustable via DIP switches
The output current can be adjusted via DIP switches. In addition, the constant current LED driver has an active power filter to correct the power factor.
The TCI MP 32 HV BI is protected against short circuits, mains voltage spikes and against overload. It also has a thermal protection acc. EN 61347 C.5. a. automatically reversible. The current control is + - 5% including temperature fluctuations.
Electrical data
| number of channels: | 1 |
|---|---|
| rated voltage: | 110-127 V |
| conformity: | CE, ENEC |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | rectangular |
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -25 °C |
| environment temperature to: | 45 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | no |
| color: | white |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|

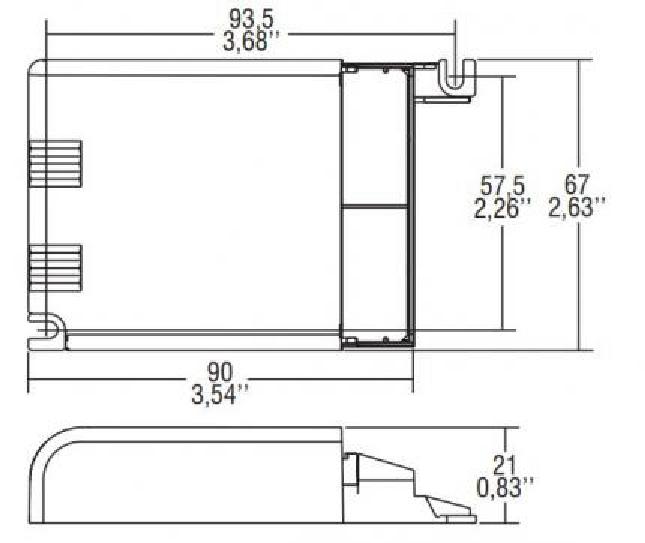

Dimensions & packaging
| EAN | 8010703310315 |
|---|---|
| Length | 67 mm |
| Width | 90 mm |
| Height | 21 mm |
| Weight | 110 g |
TCI
TCI TELECOMUNICAZIONI ITALIA S.R.L.
Via Parma 14
21047 Saronno
IT
tci@tci.it
www.tci.it/en/
