TCI LED ECG DC 45W 24V VPS MD - 127913
Product information "TCI LED ECG DC 45W 24V VPS MD - 127913"
The Tridonic DC 45W 24V VPS MD is a dimmable 24V constant voltage driver for LED modules. It is suitable for indoor and outdoor use and has a maximum rated output of 45 watts.
The driver is equipped with protection class IP20. The input and output terminals are located on opposite sides. In addition, the ECG has a single terminal block on the primary and secondary side (wire cross-section up to 0.75 - 4 mm2 / AWG18 - AWG11).
The constant voltage driver is protected against overheating and short circuit, against mains voltage spikes and against overloads.
Downloads & Documents
Electrical data
| number of channels: | 1 |
|---|---|
| output voltage: | 24 |
| rated voltage: | 220-240 V |
| conformity: | CE, ENEC |
| lifetime: | 50000 h |
| system power: | 45 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | linear |
| max housing temperature (tc-max): | 90 °C |
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -40 °C |
| environment temperature to: | 50 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | yes |
| dimming range to: | 100 % |
| dimming range from: | 1 % |
| interface: | phase cut and gating |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|

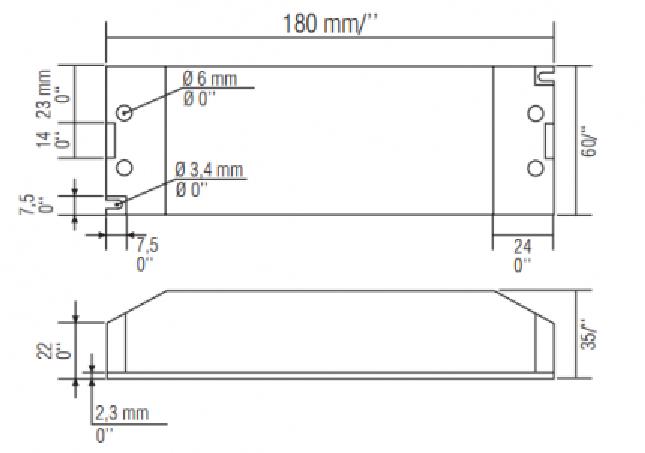

Dimensions & packaging
| EAN | 8010703326323 |
|---|---|
| Length | 60 mm |
| Width | 180 mm |
| Height | 35 mm |
