TCI LED-Driver DC 45W 12V VPS MD - 127912
Product information "TCI LED-Driver DC 45W 12V VPS MD - 127912"

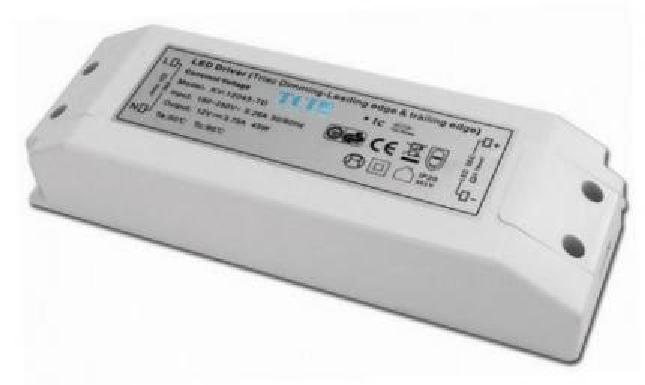

The IP20-protected phase control and reverse phase control dimmable 12V constant voltage LED driver DC 45W 12V VPS MD by TCI is suitable for independent mounting or luminaire installation.
Thanks to its Class II protection, the LED driver is protected against electric shocks for direct or indirect contact. The rated power is 45 watts.
The input and output terminal blocks are on opposite sides. There is a single terminal block on primary and secondary circuit (wire cross section up to 0.75 - 4mm2 / AWG18 - AWG11).
The TCI LED ECG is protected against overheating and short circuits, against mains voltage spikes and against overload.
Electrical data
| number of channels: | 1 |
|---|---|
| output voltage: | 12 |
| rated voltage: | 220-240 V |
| conformity: | CE, ENEC |
| system power: | 45 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | rectangular |
| max housing temperature (tc-max): | 90 °C |
| protection type: | IP20 |
| mounting: | Installation |
| protection class: | II |
| environment temperature from: | -40 °C |
| environment temperature to: | 50 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | yes |
| dimming range to: | 100 % |
| dimming range from: | 1 % |
| color: | white |
| interface: | phase cut and gating |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|

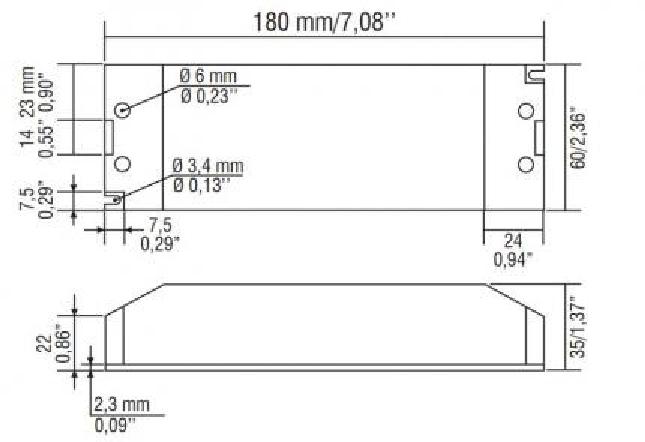

Dimensions & packaging
| EAN | 8010703326316 |
|---|---|
| Length | 60 mm |
| Width | 180 mm |
| Height | 35 mm |
TCI
TCI TELECOMUNICAZIONI ITALIA S.R.L.
Via Parma 14
21047 Saronno
IT
tci@tci.it
www.tci.it/en/
