TCI LED driver DC 12W 24V UD - 122742
Product information "TCI LED driver DC 12W 24V UD - 122742"

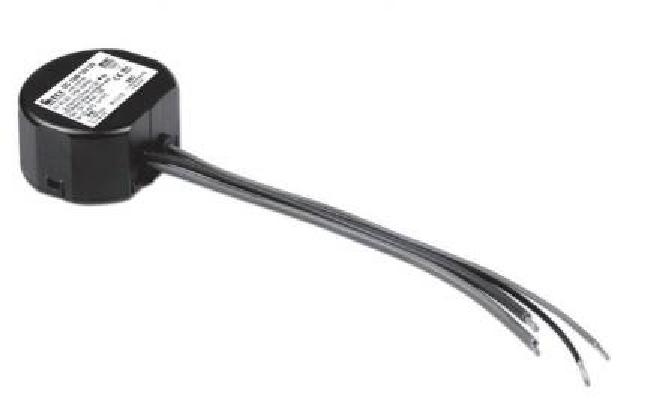

The small emergency current capable constant voltage LED driver DC 12W 24V UD by TCI is suitable for luminaire installation or mounting in a flush-mounted box. Thanks to its protection Class II, the LED driver is protected against electric shocks for direct or indirect contact. The rated power is 12 watts.

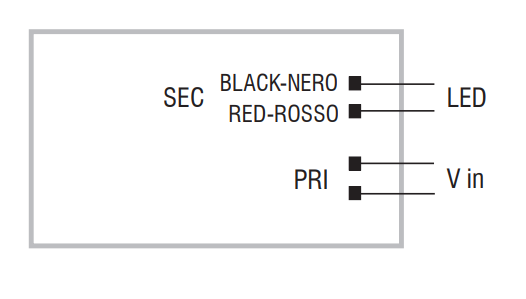

There are cables for connection at primary and secondary circuits. If the input cable is damaged, it should only be replaced by authorized personnel.
With dimensions of 49 x 51,2 x 27,4 mm, the LED ECG has an ultra-compact size.
The TCI LED ECG is protected against overheating and short circuits, against mains voltage spikes and against overload. It can be switched on and off on secondary circuit for power LED.
Electrical data
| number of channels: | 1 |
|---|---|
| output voltage: | 24 |
| operating mode: | constant current |
| operating frequency: | 50-60 Hz |
| rated voltage: | 220-240 V |
| conformity: | CE, ENEC |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | round |
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| mounting: | universal mounting |
| protection class: | II |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | no |
| color: | white |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|---|
| country of origin: | Italy |
Dimensions & packaging
| EAN | 8010703308152 |
|---|---|
| Length | 49 mm |
| Width | 51 mm |
| Height | 27 mm |
| Weight | 50 g |
