TCI LED-Driver DC 10W 24V LS - 122156
Product information "TCI LED-Driver DC 10W 24V LS - 122156"

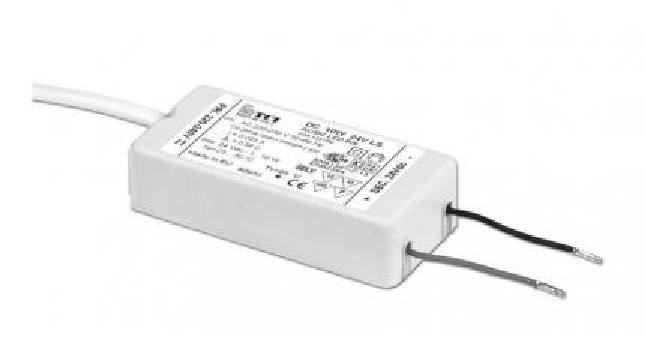

The small emergency current capable constant voltage LED driver DC 10W 24V LS by TCI is suitable for independent mounting or luminaire installation indoors. Thanks to its protection Class II, the LED driver is protected against electric shocks for direct or indirect contact. The rated power is 10 watts.
There are cables for connection at primary and secondary circuits. If the input cable is damaged, it should only be replaced by authorized personnel.

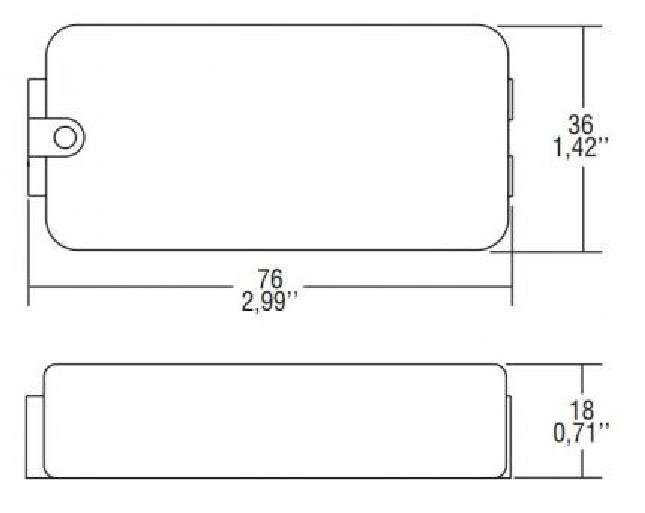

With dimensions of 76 x 36 x 18 mm, the LED ECG has an extremely small size.
The TCI LED ECG is protected against overheating and short circuits, against mains voltage spikes and against overload.
Electrical data
| number of channels: | 1 |
|---|---|
| output voltage: | 24 |
| rated voltage: | 220-240 V |
| conformity: | CE, ENEC |
| system power: | 10 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | rectangular |
| max housing temperature (tc-max): | 65 °C |
| protection type: | IP20 |
| mounting: | Installation |
| protection class: | II |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | no |
| color: | white |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|
Dimensions & packaging
| EAN | 8010703300095 |
|---|---|
| Length | 36 mm |
| Width | 76 mm |
| Height | 18 mm |
| Weight | 40 g |
