TCI FL-ECG BTL 158 - 137994/158H
Product information "TCI FL-ECG BTL 158 - 137994/158H"
58 W FL ECG for luminaire installation

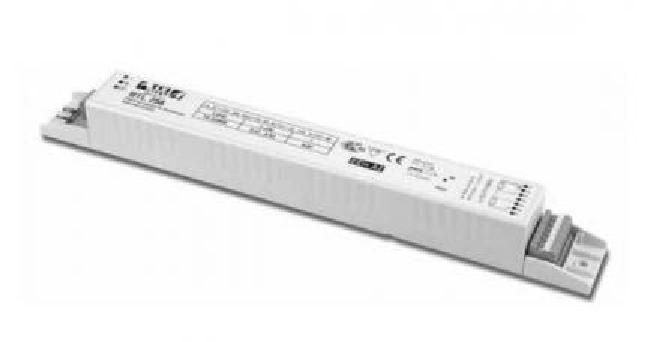

The BTL 158 from TCI is an IP20 protected electronic ballast for T8 compact fluorescent luminaires, suitable for installation in luminaires of protection class I and II. The rated power is 58 watts.
Push-wire connections are featured. The input and output terminal blocks are on opposite sides (connector cross section area 0.5 - 1.5mm2). The ballast can be secured with a slot for screws.
Warm start technology protects the lamp
The FL ECG performs a start with pre-heating to increase the life of the lamp. It also has the high energy classification EEI = A2 and is therefore very energy efficient.
The TCI BTL 158 is protected for the case of mains voltage spikes, lamp failure, end of lamp life and disconnection of the lamp (a restart with pre-heating is performed).
Electrical data
| number of channels: | 1 |
|---|---|
| energy efficiency index: | A2 |
| rated voltage: | 220-240 V |
| system power: | 58 |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 80 °C |
| protection type: | IP20 |
| mounting: | Installation |
| protection class: | II |
| environment temperature from: | -25 °C |
| environment temperature to: | 55 °C |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | electronic ballasts |
|---|

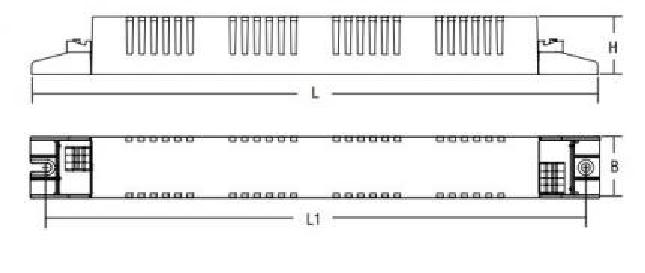

Dimensions & packaging
| EAN | 8010703101807 |
|---|---|
| Length | 280 mm |
| Width | 30 mm |
| Height | 29 mm |
