TCI FL-ECG BCC 124 IP54 - 137969IP24MM
Product information "TCI FL-ECG BCC 124 IP54 - 137969IP24MM"
IP54-protected FL ECG

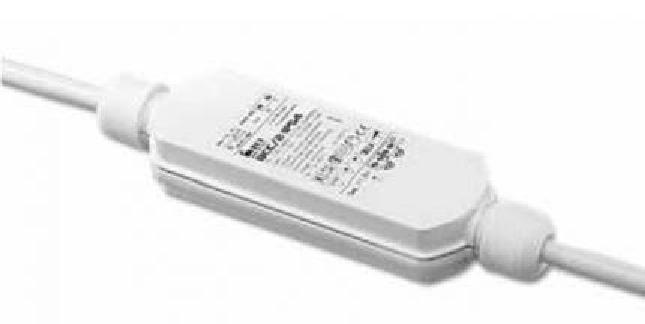

The BCC 124 IP54 by TCI is an emergency current capable IP54 protected electronic ballast for T5/T8 and TC lamps, suitable for luminaire installation. Thanks to the high IP protection (protection against splash water), it is ideal for use in humid environments (eg. bathrooms, kitchens, etc.). The maximum power is 24 watts.
The FL ECG has push-wire connections (conductor area 0.5-1.5 mm). Cable retainers are attached to the primary and secondary circuit : for H05VV-F (2x0.75 mm2, 2x1 mm2), H05VVH2-F (2x0.75 mm2, 2x1 mm2), H05SS-F (4x0.75 mm2) or FEP + FEP ( 1x0.75 mm2; 1x1 mm2). Please only use cables in accordance with the installation norms of the country where in use.
Warm start technology protects the lamp
The TCI BCC 124 IP54 performs a start with pre-heating to increase the life of the lamp. It is protected for the case of lamp failure, end of lamp life and disconnection of the lamp (a restart with pre-heating is performed). The EMC compliance at 0 and 60 Hz operation depends on the respective luminaire manufacturer.
Electrical data
| number of channels: | 1 |
|---|---|
| energy efficiency index: | A2 |
| rated voltage: | 220-240 V |
| lifetime: | 50000 h |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 85 °C |
| protection type: | IP54 |
| mounting: | with strain relief |
| protection class: | II |
| environment temperature from: | -15 °C |
| environment temperature to: | 55 °C |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | electronic ballasts |
|---|

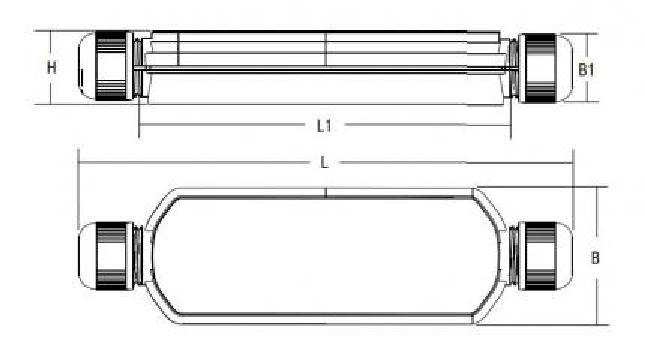

Dimensions & packaging
| EAN | 8010703100923 |
|---|---|
| Length | 133 mm |
| Width | 41 mm |
| Height | 20 mm |
TCI
TCI TELECOMUNICAZIONI ITALIA S.R.L.
Via Parma 14
21047 Saronno
IT
tci@tci.it
www.tci.it/en/
