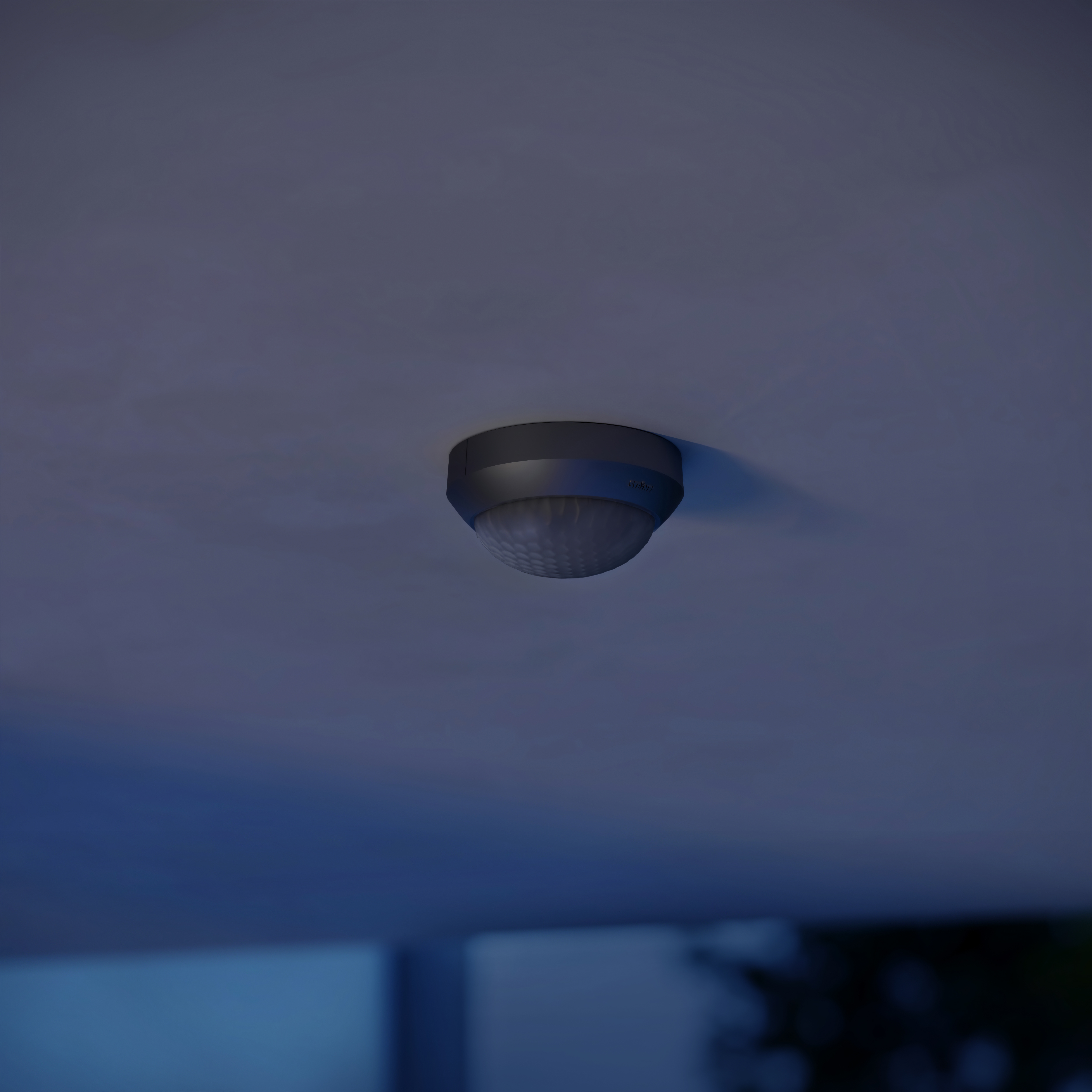

Steinel Motion detector IS 360-3 SW - 4007841006525
Immediately available
€76.43
(3% saved)
€73.86
Content:
1 Stück
Prices incl. VAT plus shipping costs net €62.07
Product information "Steinel Motion detector IS 360-3 SW - 4007841006525"
The multi-talent for indoors and outdoors. Infrared wall sensor IS 360-3, ideal for mounting under soffits, in carports, on large building facades and driveways, 3 pyro sensors for a 360° angle of coverage, reach can be set up to 12 m, selectable time and twilight threshold, detection zone can be customised with shrouds.
Downloads & Documents
STEINEL GmbH Dieselstr. 80-84 33442 Herzebrock-ClarholzDEinfo@steinel.dewww.steinel.de
Electrical data
| operating frequency: | 50-60 Hz |
|---|---|
| rated voltage: | 220-240 V |
| system power: | 2000 |
Casing
| form type: | round |
|---|---|
| protection type: | IP54 |
| mounting: | surface-mounted, ceiling mounting |
| protection class: | II |
| environment temperature from: | -20 °C |
| environment temperature to: | 50 °C |
Photometric data
| response brightness to: | 1000 Lux |
|---|---|
| response brightness from: | 2 Lux |
| setting type: | potis |
| detection angle: | 360 ° |
| color: | black |
| detection range: | Ø 6 m (28 m²) |
| interface: | COM1 |
| sensor type: | passive infrared |
| time setting to: | 15 min |
| time setting from: | 5 s |
Logistic data
| item category: | sensors |
|---|---|
| country of origin: | Romania |
Dimensions & packaging
| EAN | 4007841006525 |
|---|---|
| Length | 121 mm |
| Width | 121 mm |
| Height | 57 mm |
| Weight | 143 g |
