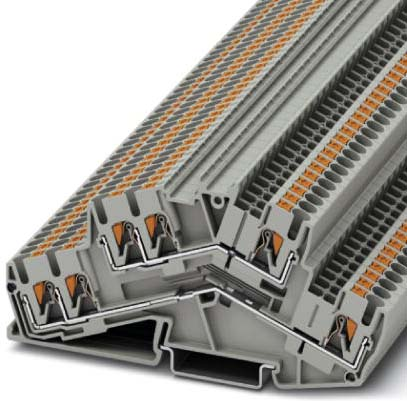

Phoenix Contact Doppelstockklemme 0,14qmm-4qmm grau PTTBS 2,5-TWIN
Product number:
3210600
Immediately available, shipping in 1-2 business days
€192.02
Prices incl. VAT plus shipping costs net €161.36
Product information "Phoenix Contact Doppelstockklemme 0,14qmm-4qmm grau PTTBS 2,5-TWIN"
Doppelstockklemme, Nennspannung: 800 V, Nennstrom: 20 A, Anschlussart: Push-in-Anschluss, 1. und 2. Etage, Bemessungsquerschnitt: 2,5 mm², Querschnitt: 0,14 mm² - 4 mm², Montageart: NS 35/7,5, NS 35/15, Farbe: grau
Technische Daten
| Anschließbarer Leiterquerschnitt feindrähtig ohne Aderendhülse | 0,14..4 mm² |
| Anschließbarer Leiterquerschnitt feindrähtig mit Aderendhülse | 0,14 mm² |
| Anschließbarer Leiterquerschnitt eindrähtig | 0,14..4 mm² |
| Anschließbarer Leiterquerschnitt mehrdrähtig | 0,14..2,5 mm² |
| Bemessungsstrom In | 20 A |
| Bemessungsspannung | 800 V |
| Ausführung elektrischer Anschluss 1 | sonstige |
| Ausführung elektrischer Anschluss 2 | sonstige |
| Anzahl der Etagen | 2 |
| Anzahl der Klemmstellen je Etage | 3 |
| Montageart | Hutschiene TH35 |
| Werkstoff des Isolierkörpers | sonstige |
| Betriebstemperatur | -60..105 °C |
| Brennbarkeitsklasse des Isolierstoffs nach UL 94 | V0 |
| Breite | 5,2 mm |
| Höhe | 111,8 mm |
| Tiefe | 45,8 mm |
| Explosionsgeprüfte Ausführung "Ex e" | nein |
| Abschlussplatte erforderlich | ja |
| Farbe | grau |
| Etagen intern gebrückt | nein |
| Verkaufseinheit | 50 |
