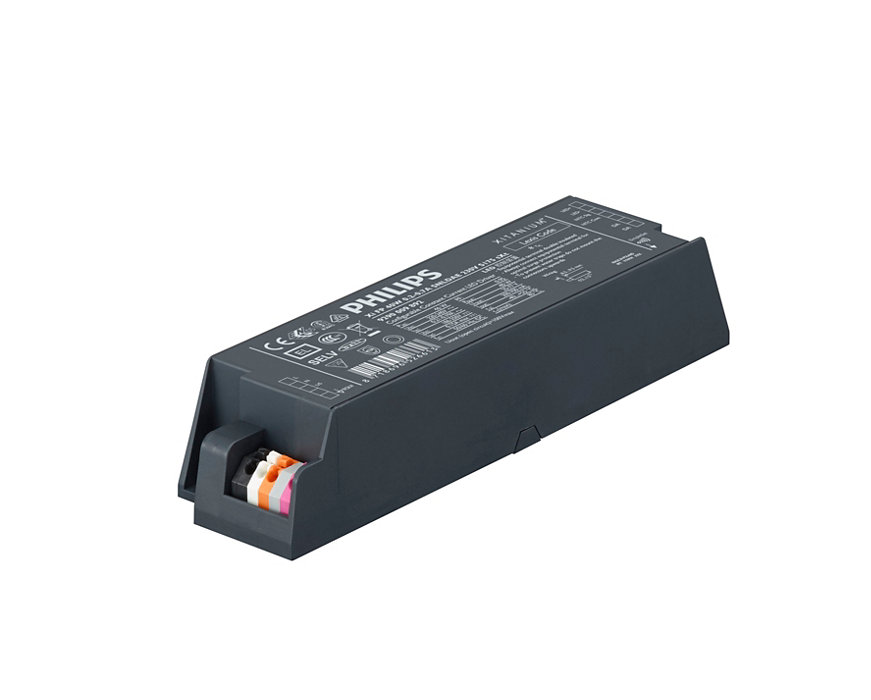

Philips LED driver Xitanium FP 22W 0.2-0.7A SNLDAE 230V S175 sXt – 929002172306
Philips LED driver Xitanium FP 22W 0.2-0.7A SNLDAE 230V S175 sXt – 929002172306
Immediately available
€55.39
Prices incl. VAT plus shipping costs net €46.55
Product information "Philips LED driver Xitanium FP 22W 0.2-0.7A SNLDAE 230V S175 sXt – 929002172306"
Philips Xitanium Full Programmable LED drivers are specifically designed to deliver the highest performance, protection and configurability. The portfolio offers both central and standalone dimming protocols further increasing the energy savings and CO2 reductions achieved with LED lighting. The Xtreme technology ensures maximum robustness and protection combined with a very long lifetime.
In this product family Philips introduces new drivers in a compact form factor with state-of-the-art features, which offer high value for both OEM customers and end-users. The products can replace the existing programmable outdoor LED drivers and will bring significant improvement in programming, assembly into a luminaire and electrical performance.
Downloads & Documents
Login
Electrical data
| output voltage: | 48 |
|---|---|
| operating frequency: | 50-60 Hz |
| rated voltage: | 230 V |
| conformity: | CB, CCC, CE, ENEC |
| lifetime: | 100000 h |
| system power: | 22 |
Casing
| fire protection: | no |
|---|---|
| form type: | linear |
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| material: | plastic |
| mounting: | universal mounting |
| protection class: | I/II |
Photometric data
| dimmable: | yes |
|---|---|
| dimming range to: | 100 % |
| dimming range from: | 10 % |
| color: | black |
| lamp type: | LED |
| interface: | Dynadimmer |
| sensor type: | no |

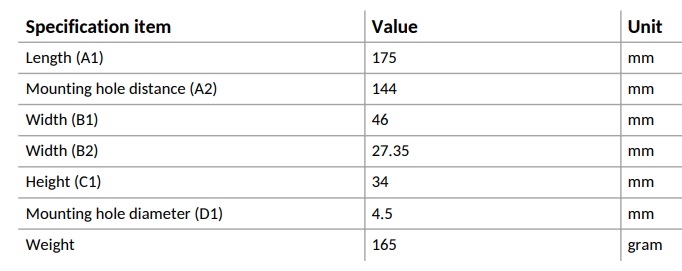

Dimensions & packaging
| EAN | 929002172306 |
|---|---|
| Length | 175 mm |
| Width | 46 mm |
| Height | 34 mm |
| Weight | 165 g |
