Osram Light Management Sensor DALIeco LS / PD LI - 4008321988652
Osram Light Management Sensor DALIeco LS / PD LI - 4008321988652
Immediately available (18 articles directly deliverable)
That's why you should buy this product now
- Excellent reviews on Trustpilot
- 4.8 out of 5 ⭐⭐⭐⭐⭐ on Google
- Short delivery times for stock items
- Very good price-performance ratio
- Highest possible quality standards
- Products from renowned manufacturers
€50.63
Prices incl. VAT plus shipping costs net €42.55
Product information "Osram Light Management Sensor DALIeco LS / PD LI - 4008321988652"

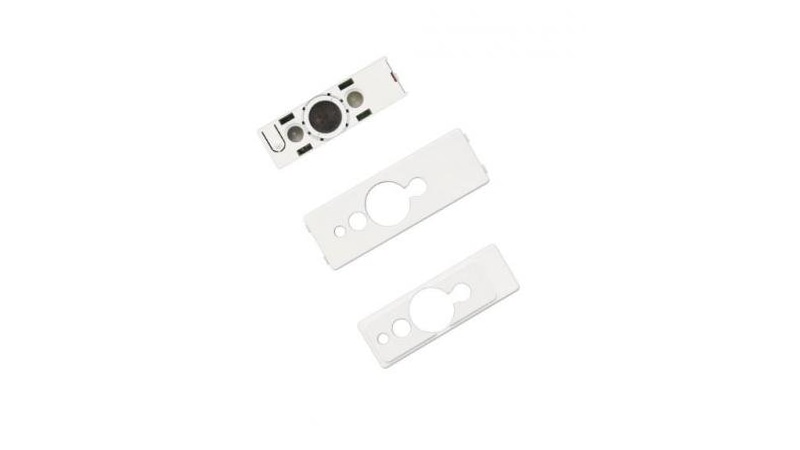

The VDE / EMC-certified DALI light and presence sensor with function display DALIeco LS / PD LI from OSRAM is suitable for installation in luminaires, for example in office lighting. Ceiling installation is also possible using the LS/PD CI KIT from OSRAM.
The sensor has a V (λ)-corrected light sensor element. Both the light sensor and the presence sensor can be individually activated and deactivated via remote control. The presence detection range is adjustable via integrated shutters between 40 and 90 °. Presence detection takes place via a passive infrared element.
There is a function indicator with a two-color LED. In addition, an infrared remote control receiver and a pushbutton for automatic startup and deactivation of the infrared receiver are integrated.
The halogen-free polycarbonate plastic housing is IP20-protected.
Downloads & Documents
Konformitaetserklaerung-Osram-Lichtmanagement-Sensor-DALIeco-LS-PD-LI-4008321988652_1592165889_4
Declaration-of-Conformity-Osram-Light-Management-Sensor-DALIeco-LS-PD-LI-4008321988652_1592165889_5
Datenblatt-Osram-Lichtmanagement-Sensor-DALIeco-LS-PD-LI-4008321988652_1592165889_7
Installationsanleitung-Osram-Lichtmanagement-Sensor-DALIeco-LS-PD-LI-4008321988652_1592165889_8
Datasheet-Osram-Light-Management-Sensor-DALIeco-LS-PD-LI-4008321988652_1592165889_9
Login
Electrical data
| conformity: | CE |
|---|
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | linear |
| protection type: | IP20 |
| material: | plastic |
| mounting: | ceiling mounting, Installation |
| protection class: | II |
| environment temperature from: | -20 °C |
| environment temperature to: | 50 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | no |
| detection angle: | 80 ° |
| color: | white |
| inclusive lamp: | no |
| sensor type: | no |
| solar panel: | no |
Logistic data
| country of origin: | Hungary |
|---|

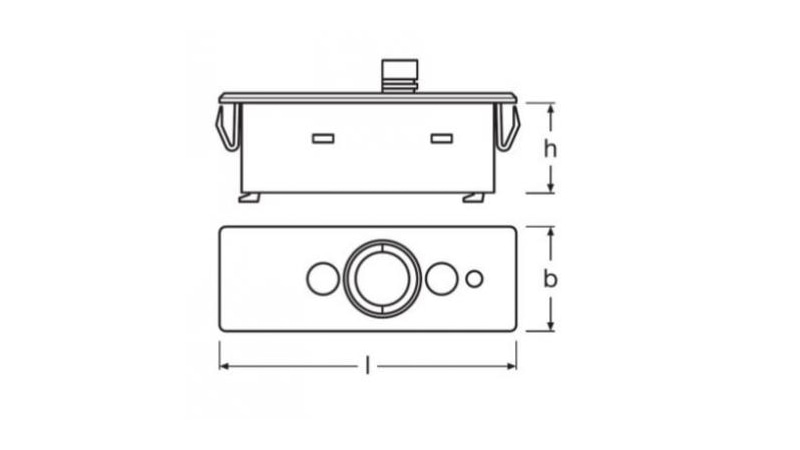

Dimensions & packaging
| EAN | 4008321988652 |
|---|---|
| Length | 48 mm |
| Width | 15 mm |
| Height | 17 mm |
| Weight | 33 g |
