Osram LED-Driver OTI DX 50/220-240/1A4 NFC - 4062172061865

Inventronics Europe BV

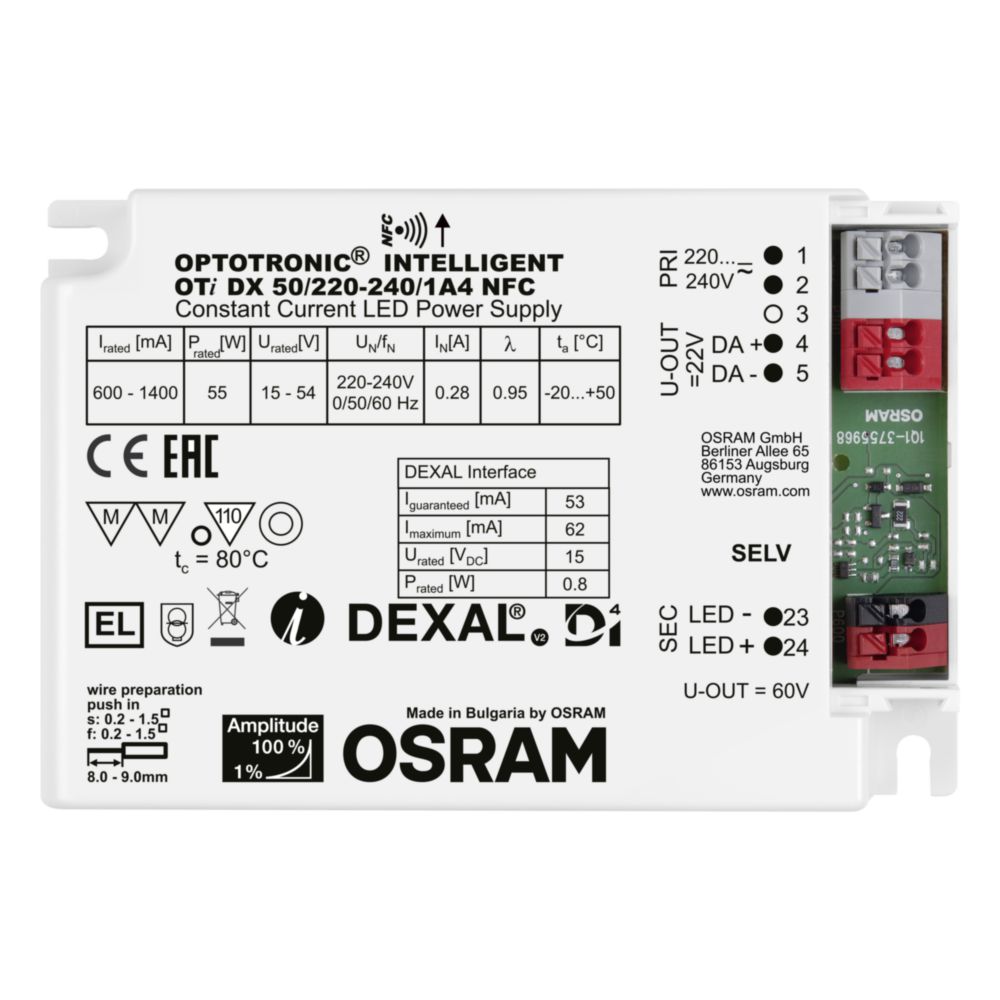

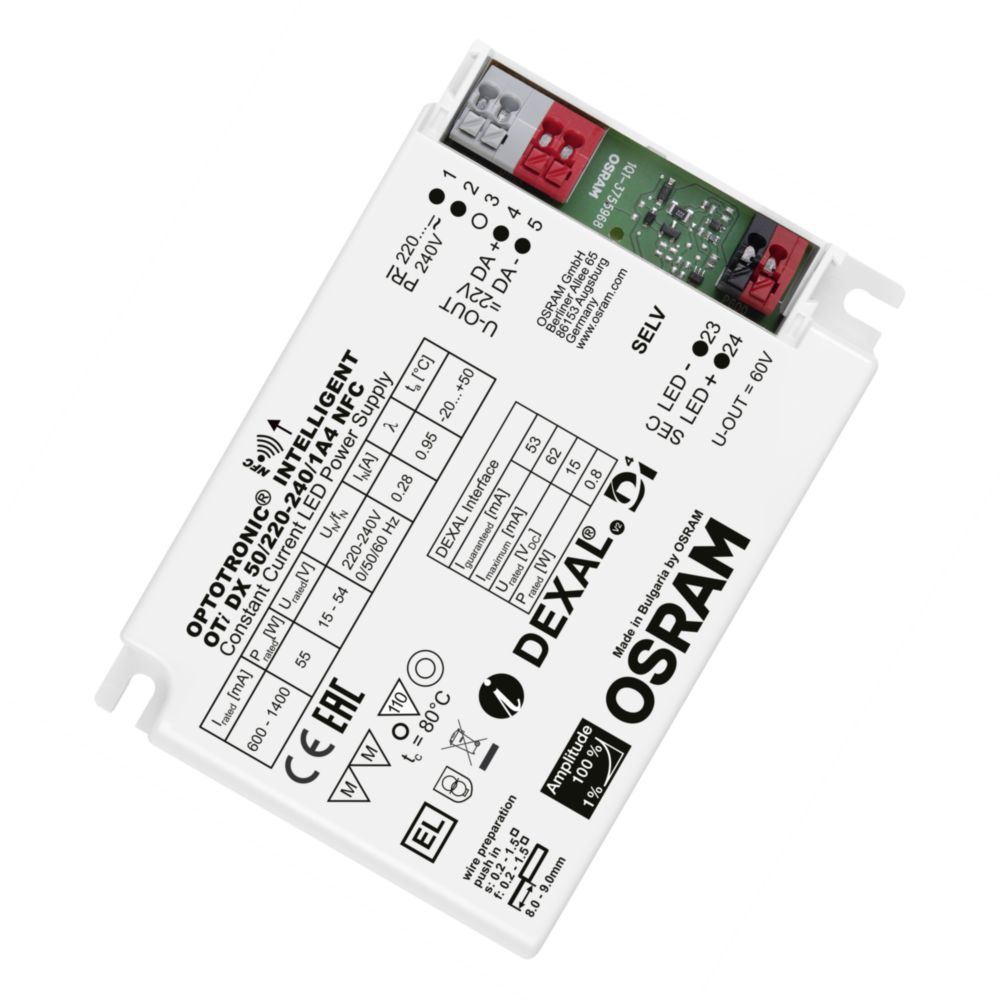

Osram LED-Driver OTI DX 50/220-240/1A4 NFC - 4062172061865

Product number: 4062172061865

Shipping in 7 day(s)

€47.03


net €39.52

Product information "Osram LED-Driver OTI DX 50/220-240/1A4 NFC - 4062172061865"

Discover the high-quality LED driver OTI DX 50/220-240/1A4 NFC, ideal for linear and wide-area applications. With its outstanding efficiency and long service life, this driver is the perfect choice for your lighting requirements.

  • Product name: OTI DX 50/220-240/1A4 NFC
  • EAN: 4062172061865
  • Insulation: SELV
  • Input voltage AC: 198...264 V
  • DC input voltage: 176...276 V
  • Nominal output power: 55 W
  • Nominal output voltage: 15...54 V
  • Nominal output current: 600...1400
  • Power factor [λ]: 0.83C...0.98
  • Inrush current: 30.0 A
  • Max. Number of ECGs on 16 A (B) Fuse: 20
  • Maximum efficiency: 91
  • Ripple (100 Hz): < 3
  • Dimming function: DALI, DEXAL, D4i
  • Corridor function: No
  • Constant lumen function: Programmable
  • DALI-2: Yes
  • Programming interface: DALI, NFC
  • Programming device: DALI, NFC
  • Emergency mode: Yes
  • Suitable for emergency lighting: Yes
  • Service life: 50000 / 100000
  • Operating temperature [Tₐ] in °C: -20...+50
  • Maximum housing temperature [Tᶜ] in °C: 80
  • Protection class: I, II
  • Protection class: IP20
  • Dimensions (L x W x H): 110 x 75 x 25 mm
  • Certificates & approvals: ENEC 10, VDE, EMC, EL, CE, DALI-2, CCC, EAC, D4i
The OTI DX 50/220-240/1A4 NFC LED driver offers you a reliable and efficient solution for your lighting projects. Thanks to its design, it can be used flexibly. With a maximum efficiency of up to 91% and a low ripple of < 3%, this driver ensures stable and uniform lighting.
The driver can be easily customised to your specific requirements thanks to the simple setting of the nominal output currents using DALI, NFC. With a service life of 50000 / 100000 hours and a robust design, the OTI DX 50/220-240/1A4 NFC is suitable for long-term use in a variety of environments.
Get this versatile and powerful LED driver and benefit from its outstanding features and certifications that guarantee high quality and safety.

Downloads & Documents
Electrical data
number of channels: 1
output current: 600, 625, 650, 675, 700, 725, 750, 775, 800, 825, 850, 875, 900, 925, 950, 975, 1000, 1025, 1050, 1075, 1100, 1125, 1150, 1175, 1200, 1225, 1250, 1275, 1300, 1325, 1350, 1375, 1400
operating mode: constant current
