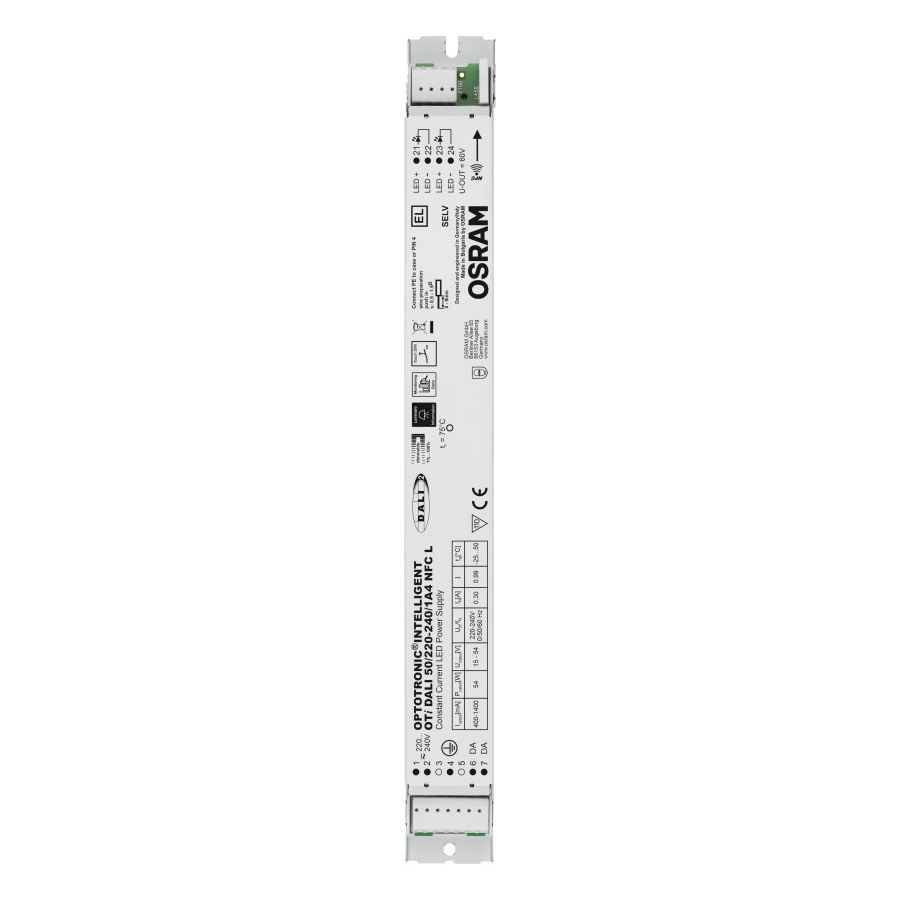

Osram LED-Driver OTi DALI 80/220-240/2A1 NFC L - 4062172238656

Inventronics Europe BV

Osram LED-Driver OTi DALI 80/220-240/2A1 NFC L - 4062172238656

Product number: 4062172238656

Immediately available

€45.76


Content: 1 Stück

Prices incl. VAT plus shipping costs net €38.45

Product information "Osram LED-Driver OTi DALI 80/220-240/2A1 NFC L - 4062172238656"

Product family benefits

  • Fully programmable via software (DALI Interface, NFC)
  • Advanced luminaire/driver data (power, energy, operating hours…) for analytics
  • DALI-2 certified incl. Parts 251, 252, 253
  • Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
  • High-quality dimming of 1…100 % by amplitude dimming
  • Higher quality of light thanks to < 3% output ripple current
  • Very high efficiency
  • Very low standby power consumption: < 0.15 W *
  • Fulfill safety requirement due to overload, overtemperature, Hot Plug protection



Areas of application

  • Linear lighting for office, education, industry, storage areas and retail
  • Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
  • Suitable for luminaires of protection class I
Electrical data
number of channels: 1
output current: 600, 625, 650, 675, 700, 725, 750, 775, 800, 825, 850, 875, 900, 925, 950, 975, 1000, 1025, 1050, 1075, 1100, 1125, 1150, 1175, 1200, 1225, 1250, 1275, 1300, 1325, 1350, 1375, 1400, 1425, 1450, 1475, 1500, 1525, 1550, 1575, 1600, 1625, 1650, 1675, 1700, 1725, 1750, 1775, 1800, 1825, 1850, 1875, 1900, 1925, 1950, 1975, 2000, 2025, 2050, 2075, 2100
operating mode: constant current
rated voltage: 220-240 V
conformity: BIS, CCC, CE, EAC, ENEC, RCM
lifetime: 100000 h
Casing
fire protection: no
form type: linear
max housing temperature (tc-max): 75 °C
protection type: IP20
material: metal
mounting: universal mounting
protection class: I
environment temperature from: -20 °C
environment temperature to: 50 °C
Photometric data
color: white
lamp type: LED
interface: DALI-2
Dimensions & packaging
EAN 4062172238656
Length 360 mm
Width 30 mm
Height 21 mm
Weight 270 g

Inventronics GmbH
Parkring 31-33,
85748 Garching, Germany

Email: support@inventronicsglobal.com
https://www.inventronicsglobal.com/en/
