Osram LED-Driver OT FIT 35/220-240/700 NFC L - 4062172064002
Inventronics Europe BV
Osram LED-Driver OT FIT 35/220-240/700 NFC L - 4062172064002
Product number:
4062172064002
Content:
1 Stück
Immediately available
€16.07
Content:
1 Stück
Product information "Osram LED-Driver OT FIT 35/220-240/700 NFC L - 4062172064002"
Product family advantages
- Flexible future-proof current setting via NFC (Near Field Communication)
- Service life: up to 100,000 h (at Tc = 65 °C, max. 10 % failure rate)
- Meets SVM (≤ 0.4) and PsT (≤ 1.0) requirements
- Higher light quality thanks to < 1% output ripple current
- Very high efficiency
- Meets safety requirements with overload and overtemperature protection
Areas of application
- Linear lighting solutions for offices, educational facilities, industrial buildings, storage areas and retail
- Installation in emergency lighting systems according to IEC 61347-2-13, Annex J
- Suitable for luminaires of protection class I
Electrical data
| number of channels: | 1 |
|---|---|
| output current: | 250, 275, 300, 325, 350, 375, 400, 425, 450, 475, 500, 525, 550, 575, 600, 625, 650, 675, 700 |
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| conformity: | BIS, CCC, CE, EAC, ENEC, RCM |
| lifetime: | 100000 h |
Casing
| fire protection: | no |
|---|---|
| form type: | linear |
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| material: | metal |
| mounting: | universal mounting |
| protection class: | I |
| environment temperature from: | -25 °C |
| environment temperature to: | 60 °C |
Photometric data
| color: | white |
|---|---|
| lamp type: | LED |

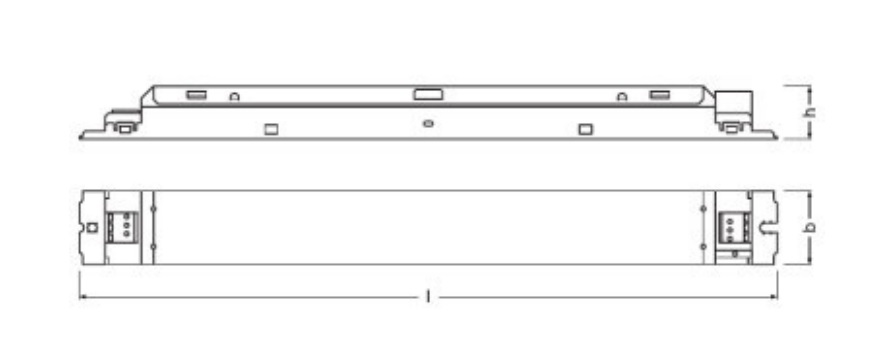

Dimensions & packaging
| EAN | 4062172064002 |
|---|---|
| Length | 280 mm |
| Width | 30 mm |
| Height | 21 mm |
| Weight | 170 g |
