Osram LED-Driver OT FIT 300/220-240/24 P - 4062172085687

Inventronics Europe BV

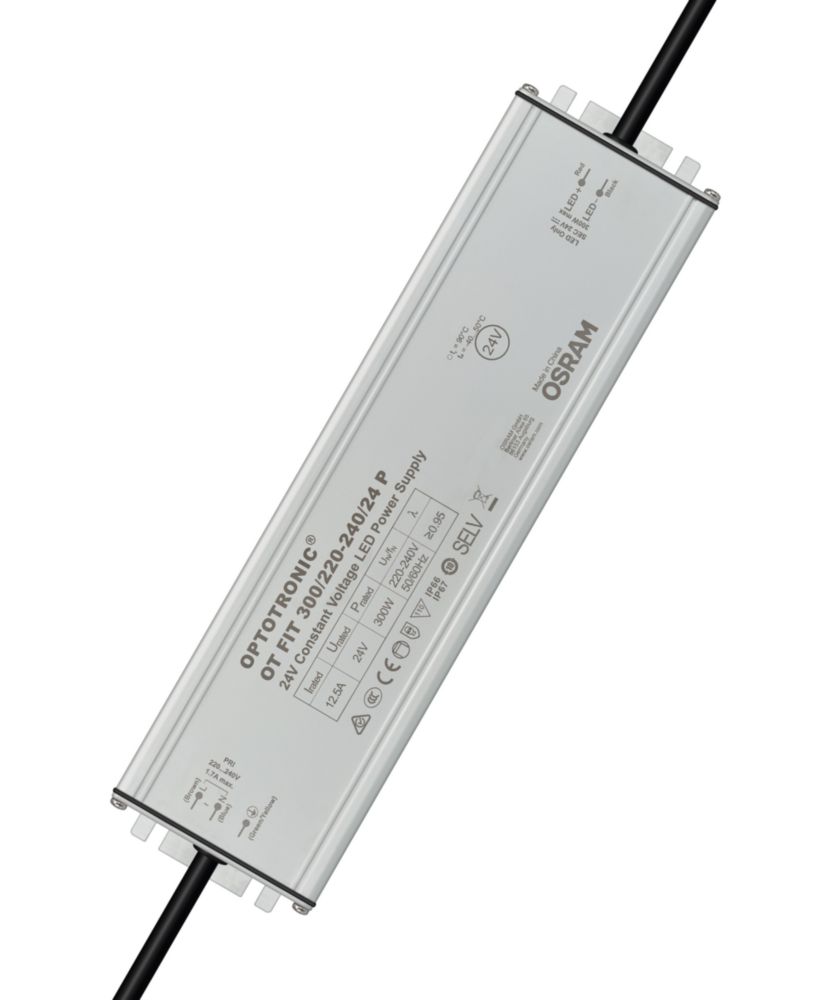

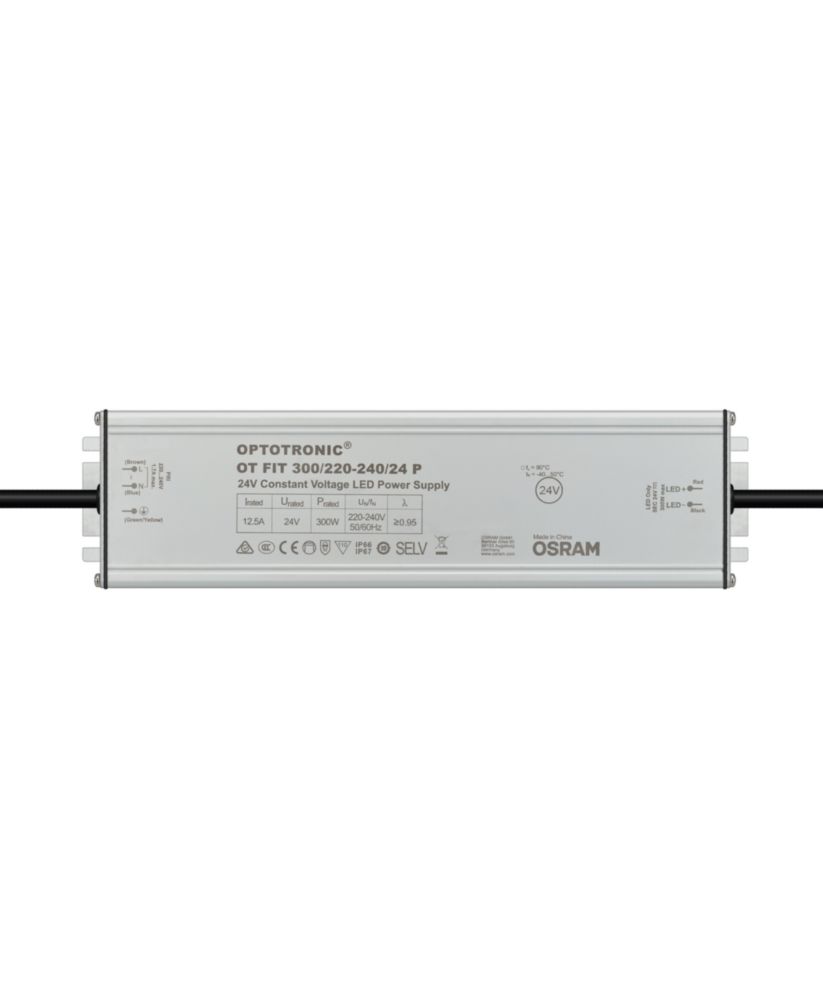

Osram LED-Driver OT FIT 300/220-240/24 P - 4062172085687

Product number: 4062172085687

Shipping in 7 day(s)

€112.91


Prices incl. VAT plus shipping costs net €94.88

Product information "Osram LED-Driver OT FIT 300/220-240/24 P - 4062172085687"

Discover the high-quality OT FIT 300/220-240/24 P LED driver, ideal for linear and wide-area applications. With its outstanding efficiency and long service life, this driver is the perfect choice for your lighting requirements.

  • Product name: OT FIT 300/220-240/24 P
  • EAN: 4062172085687
  • Insulation: SELV
  • Input voltage AC: 198...264 V
  • Input voltage DC: Not relevant
  • Nominal output power: 300 W
  • Nominal output voltage: 24 V
  • Nominal output current: Not relevant
  • Power factor [λ]: 0.95
  • Inrush current: 60.0 A
  • Max. Number of ECGs on 16 A (B) Fuse: 4
  • Maximum efficiency: 93
  • Ripple (100 Hz):
  • Dimming function: Not relevant
  • Corridor function: No
  • Constant lumen function: No
  • DALI-2: No
  • Programming interface: n/a
  • Programming device: n/a
  • Emergency mode: No
  • Suitable for emergency lighting: No
  • Service life: 50000
  • Operating temperature [Tₐ] in °C: -40...+50
  • Maximum housing temperature [Tᶜ] in °C: 90
  • Protection class: I
  • Protection class: IP66/IP67

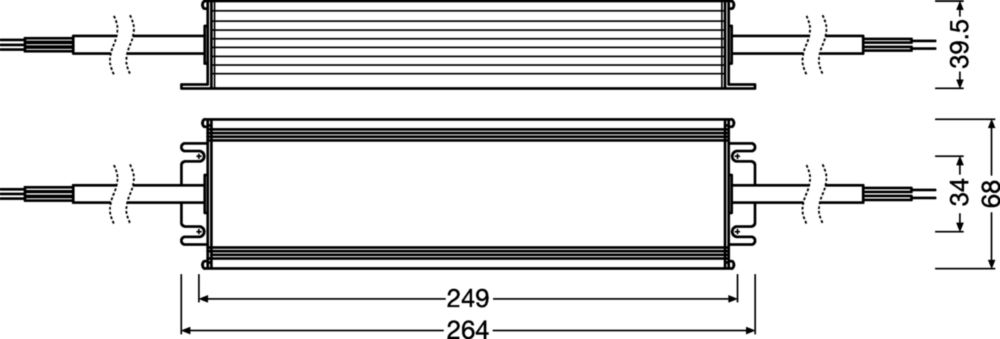

  • Dimensions (L x W x H): 260 x 68 x 39.6 mm
  • Certificates & approvals: CE, CCC, TISI, RCM
The OT FIT 300/220-240/24 P LED driver offers you a reliable and efficient solution for your lighting projects. Thanks to its design, it can be used flexibly. With a maximum efficiency of up to 93% and a low ripple of %, this driver ensures stable and uniform lighting.
With a service life of 50,000 hours and a robust design, the OT FIT 300/220-240/24 P is suitable for long-term use in a variety of environments.
Get this versatile and powerful LED driver and benefit from its outstanding features and certifications that guarantee high quality and safety.
Downloads & Documents
Electrical data
number of channels: 1
output voltage: 24
operating mode: constant voltage
system power: 300
Photometric data
dimmable: no
Dimensions & packaging
EAN 4062172085687

Inventronics GmbH
Parkring 31-33,
85748 Garching, Germany
