Osram LED-Driver OT FIT 25/220…240/300 D LT2 L - 4052899990289

Inventronics Europe BV

Osram LED-Driver OT FIT 25/220…240/300 D LT2 L - 4052899990289

Product number: 4052899990289

Immediately available

€13.14


Prices incl. VAT plus shipping costs net €11.04

Product information "Osram LED-Driver OT FIT 25/220…240/300 D LT2 L - 4052899990289"

Discover the high-quality OT FIT 25/220...240/300 D LT2 L LED driver, ideal for linear and wide-area applications. With its outstanding efficiency and long service life, this driver is the perfect choice for your lighting requirements.
  • Product name: OT FIT 25/220...240/300 D LT2 L
  • EAN: 4052899990289
  • Insulation: Non isolated
  • Input voltage AC: 198...264 V
  • DC input voltage: 176...276 V
  • Nominal output power: 2...25 W
  • Nominal output voltage: 40...216 V
  • Rated output current: 35...300
  • Power factor [λ]: 0.42C...0.95
  • Inrush current: 30
  • Max. Number of ECGs on 16 A (B) fuse: 100
  • Maximum efficiency: up to 90
  • Ripple (100 Hz): < 5
  • Dimming function: Not relevant
  • Corridor function: No
  • Constant lumen function: No
  • DALI-2: No
  • Programming interface: LEDset
  • Programming device: LEDset
  • Emergency mode: No
  • Suitable for emergency lighting: Yes
  • Service life: 50000 / 100000
  • Operating temperature [Tₐ] in °C: -20...+60
  • Maximum housing temperature [Tᶜ] in °C: 75
  • Protection class: I
  • Protection class: IP20

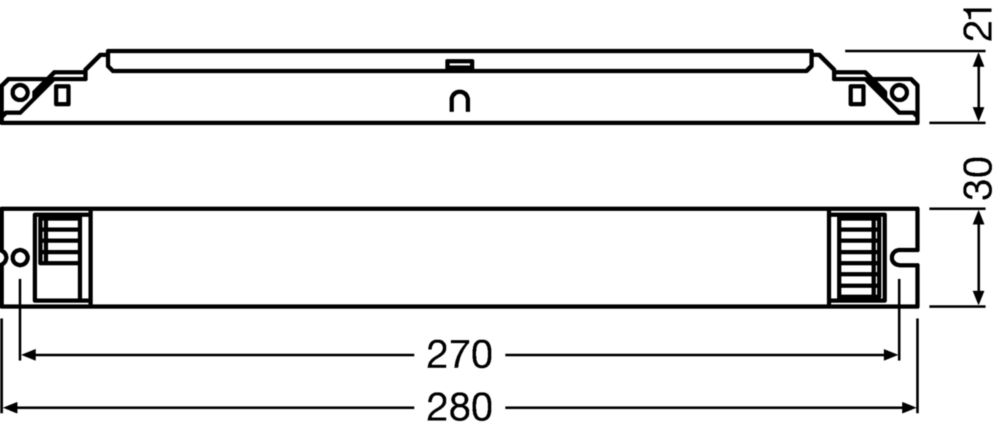

  • Dimensions (L x W x H): 280 x 30 x 21 mm
  • Certificates & approvals: CE, EL, VDE-ENEC, VDE-EMC, EAC, CCC
The OT FIT 25/220...240/300 D LT2 L LED driver offers you a reliable and efficient solution for your lighting projects. Thanks to its design, it can be used flexibly. With a maximum efficiency of up to 90% and a low ripple of < 5%, this driver ensures stable and uniform lighting.
The driver can be easily customised to your specific requirements thanks to the simple adjustment of the rated output currents using the LED set. With a service life of 50000 / 100000 hours and a robust design, the OT FIT 25/220...240/300 D LT2 L is suitable for long-term use in various environments.
Get this versatile and powerful LED driver and benefit from its outstanding features and certifications that guarantee high quality and safety.
Downloads & Documents
Electrical data
number of channels: 1
output current: 35, 50, 75, 100, 125, 150, 175, 200, 225, 250, 275, 300
operating mode: constant current
Dimensions & packaging
EAN 4052899990289
