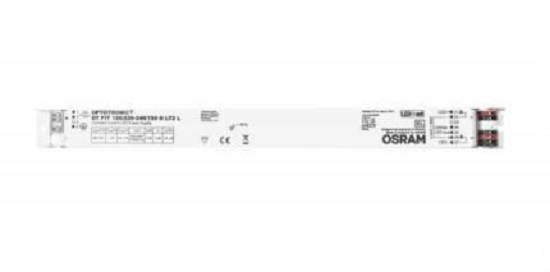

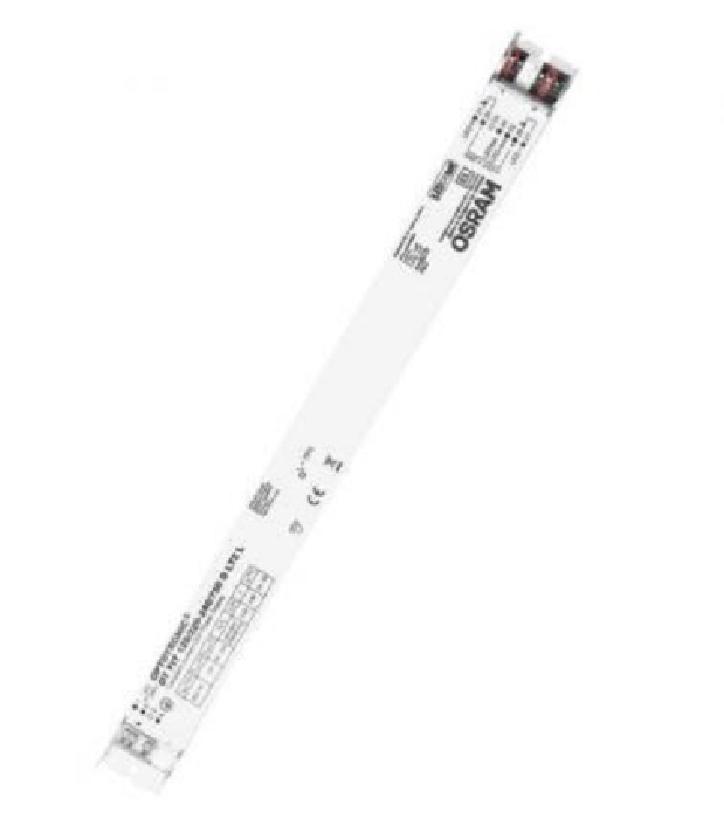

Osram LED-Driver OT FIT 120/220-240/750 D LT2 L - 4052899497900
Osram LED-Driver OT FIT 120/220-240/750 D LT2 L - 4052899497900
Shipping in 14 day(s)
€22.10
Prices incl. VAT plus shipping costs net €18.57
Product information "Osram LED-Driver OT FIT 120/220-240/750 D LT2 L - 4052899497900"
The constant current driver for LED modules OT FIT 120/220-240/750 D LT2 L from the Optotronic Fit D LT2 L range from Osram is suitable for installation in luminaires of protection class I. The output current can be set flexibly via LEDset2 technology. The LED ECG is also suitable for use in emergency lighting systems according to IEC 61347-2-13 and EN 60598-2-22.
Ideal applications are linear lighting solutions for offices, educational facilities, industrial buildings, storage areas and retail. With its output power range of up to 120 watts, the LED driver can be used in a versatile scope of applications. It also has a high efficiency and reliability. Thanks to a very low output ripple current, you benefit from a high quality of light.
The housing of the Osram OT FIT driver is IP20 protected. Additionally, the LED driver has an overload, an overtemperature and a hot plug protection. Its lifetime is 100,000 hours at a maximum housing temperature of 65°C and a maximum failure rate of 10%.
Electrical data
| number of channels: | 1 |
|---|---|
| output current: | 250, 275, 300, 325, 350, 375, 400, 425, 450, 475, 500, 525, 550, 575, 600, 625, 650, 675, 700 |
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| lifetime: | 50000 h |
Casing
| fire protection: | no |
|---|---|
| form type: | linear |
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| material: | metal |
| mounting: | Installation |
| protection class: | I |
| environment temperature from: | -25 °C |
| environment temperature to: | 60 °C |
Photometric data
| dimmable: | no |
|---|---|
| color: | white |
Logistic data
| item category: | LED drivers |
|---|

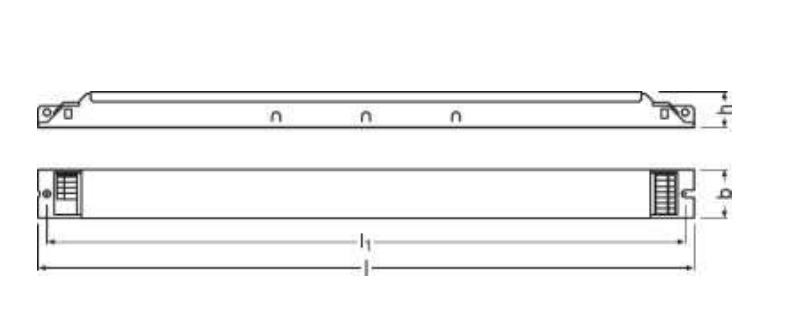

Dimensions & packaging
| EAN | 4052899497900 |
|---|---|
| Length | 360 mm |
| Width | 30 mm |
| Height | 21 mm |
| Weight | 290 g |
Inventronics GmbH
Parkring 31-33,
85748 Garching, Germany
Email: support@inventronicsglobal.com
https://www.inventronicsglobal.com/en/
