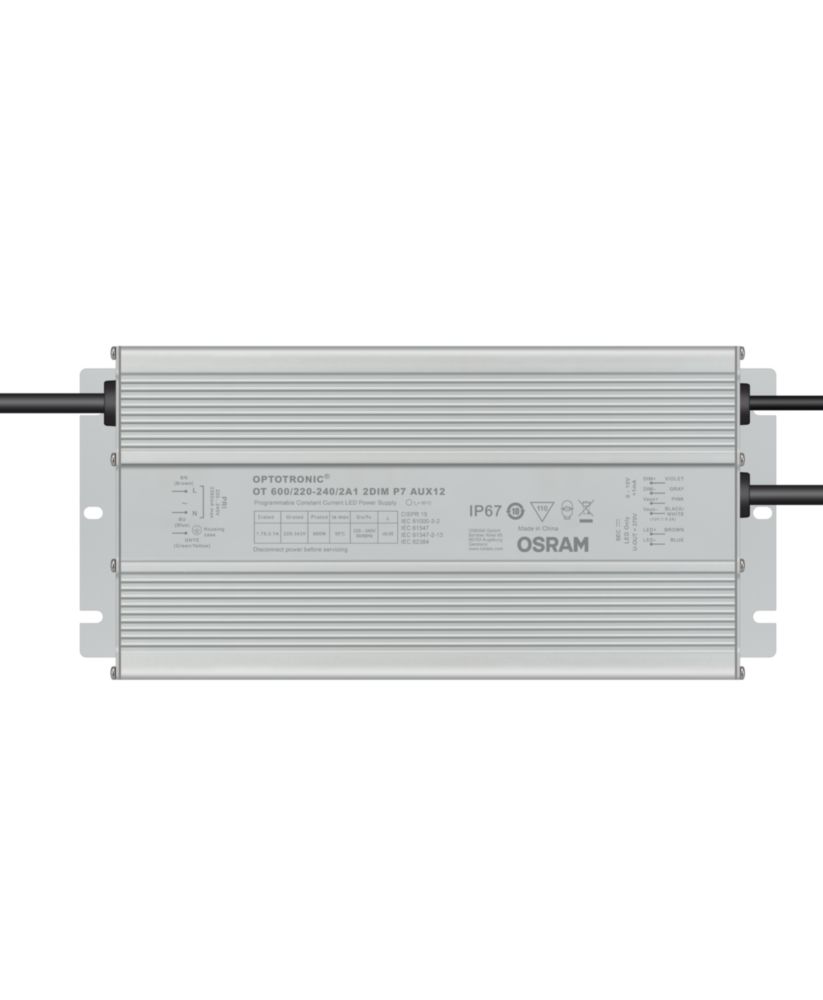

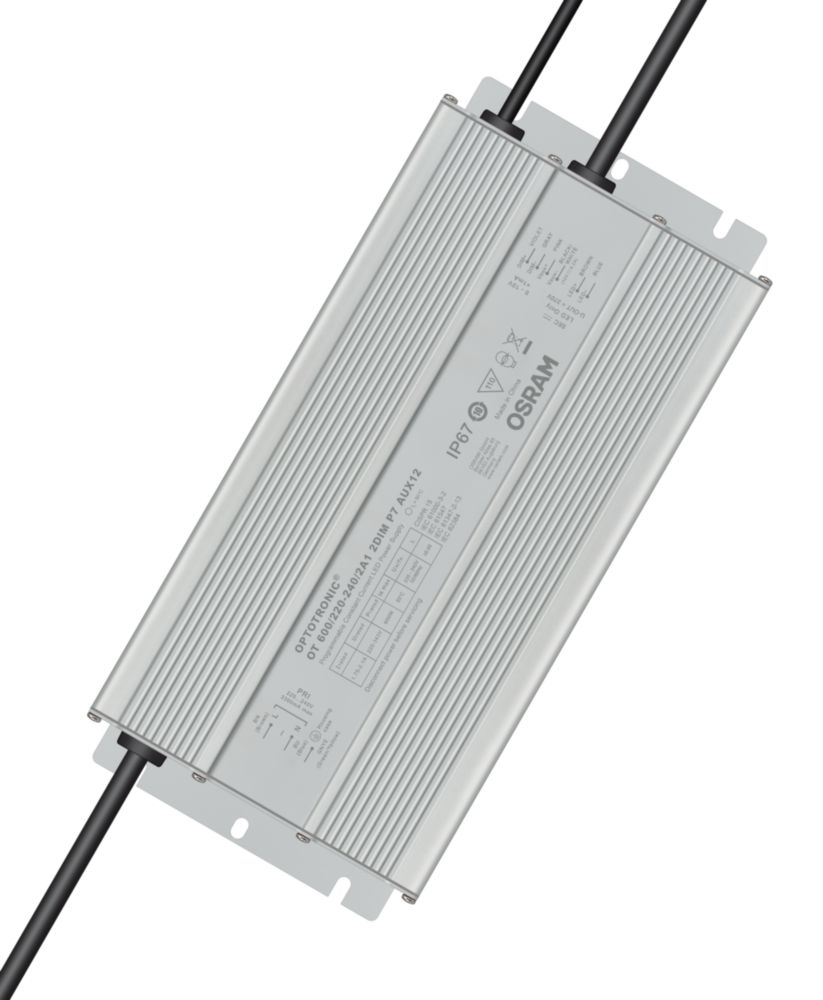

Osram LED-Driver OT 600/220-240/ 2A1 2DIM P7 AUX12 - 4052899624238

Inventronics Europe BV

Osram LED-Driver OT 600/220-240/ 2A1 2DIM P7 AUX12 - 4052899624238

Product number: 4052899624238

Shipping in 7 day(s)

€202.28


net €169.98

Product information "Osram LED-Driver OT 600/220-240/ 2A1 2DIM P7 AUX12 - 4052899624238"

Discover the high-quality LED driver OT 600/220-240/ 2A1 2DIM P7 AUX12, ideal for linear and wide-area applications. With its outstanding efficiency and long service life, this driver is the perfect choice for your lighting requirements.
  • Product name: OT 600/220-240/ 2A1 2DIM P7 AUX12
  • EAN: 4052899624238
  • Insulation: Basic
  • Input voltage AC: 198...264 V
  • Input voltage DC: Not relevant
  • Nominal output power: 600 W
  • Nominal output voltage: 225...343 V
  • Rated output current: 1750...2100
  • Power factor [λ]: 0.95
  • Inrush current: 55.0 A
  • Max. Number of ECGs on 16 A (B) Fuse: 2
  • Maximum efficiency: 94
  • Ripple (100 Hz): 6
  • Dimming function: 1...10 V, 2DIM
  • Corridor function: No
  • Constant lumen function: Yes
  • DALI-2: No
  • Programming interface: n/a
  • Programming device: OT Programmer-S
  • Emergency mode: No
  • Suitable for emergency lighting: No
  • Service life: 50000 / 100000
  • Operating temperature [Tₐ] in °C: -40...+55
  • Maximum housing temperature [Tᶜ] in °C: 90
  • Protection class: I
  • Protection class: IP67

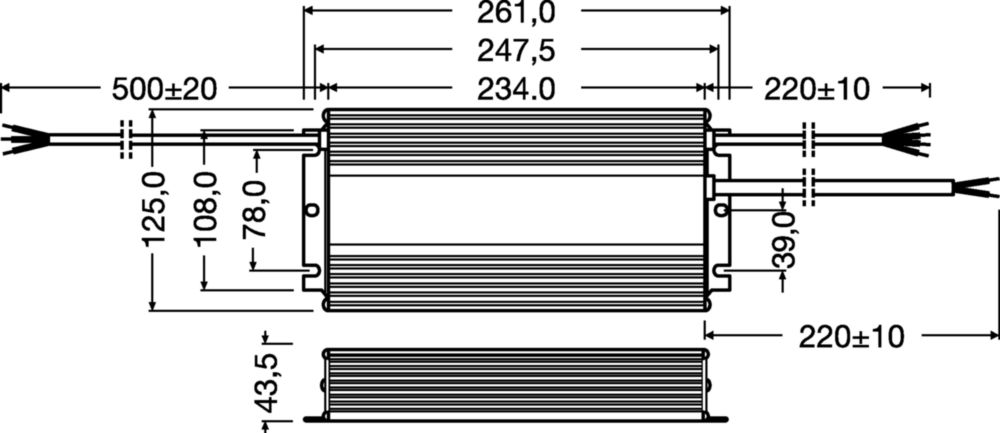

  • Dimensions (L x W x H): 261 x 125 x 43.5 mm
  • Certificates & approvals: CCC, CE, ENEC, RCM, CB
The OT 600/220-240/ 2A1 2DIM P7 AUX12 LED driver offers you a reliable and efficient solution for your lighting projects. Thanks to its design, it can be used flexibly. With a maximum efficiency of up to 94% and a low ripple of 6%, this driver ensures stable and uniform lighting.
The driver can be easily customised to your specific requirements thanks to the simple setting of the rated output currents using the OT Programmer-S. With a service life of 50000 / 100000 hours and a robust design, the OT 600/220-240/ 2A1 2DIM P7 AUX12 is suitable for long-term use in various environments.
Get this versatile and powerful LED driver and benefit from its outstanding features and certifications that guarantee high quality and safety.
Downloads & Documents
Electrical data
number of channels: 1
output current: 1750, 1800, 1850, 1900, 1950, 2000, 2050, 2100
operating mode: constant current
Dimensions & packaging
EAN 4052899624238
