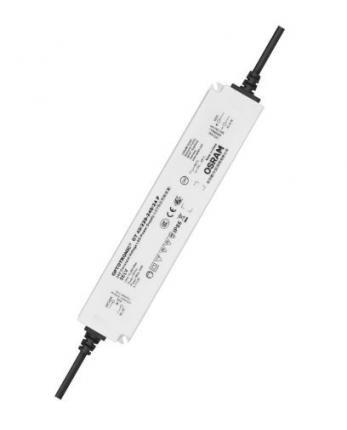

Osram LED-Driver OT 40/220-240/24 P - 4052899545946
Osram LED-Driver OT 40/220-240/24 P - 4052899545946
Immediately available (2 articles directly deliverable)
That's why you should buy this product now
- Excellent reviews on Trustpilot
- 4.8 out of 5 ⭐⭐⭐⭐⭐ on Google
- Short delivery times for stock items
- Very good price-performance ratio
- Highest possible quality standards
- Products from renowned manufacturers
€34.99
Prices incl. VAT plus shipping costs net €29.40
Product information "Osram LED-Driver OT 40/220-240/24 P - 4052899545946"
IP67 protected 24V constant voltage driver
The IP67-protected LED ECG with DC mode functionality OT 40 / 220-240 / 24 P by OSRAM is suitable for luminaire installation or independent installation indoors and outdoors : for example, for facades, public squares, cruise ships or for signages. The stable output power is 40 watts.
Installation in cold and hot environments
Thanks to its wide operating temperature range of -30 to + 55 ° C, the 24V constant voltage LED driver is also suitable for mounting in extremely cold and hot environments. The Smart Power Supply technology provides boosting power to turn on cold LEDs.
The OSRAM LED driver has a high electronically reversible short-circuit, overload and over-temperature protection as well as an overvoltage protection up to 4 kV (L-N) / 6 kV (L / N-PE). The lifetime is up to 50,000 hours at maximum housing temperature.
Downloads & Documents
CB-Certificate-Osram-LED-Driver-OT-40-220-240-24-P-4052899545946_1592162333_2
Datenblatt-Osram-LED-Treiber-OT-40-220-240-24-P-4052899545946_1592162333_3
CB-Zertifikat-Osram-LED-Treiber-OT-40-220-240-24-P-4052899545946_1592162319_4
Declaration-of-Confirmity-Osram-LED-Driver-OT-40-220-240-24-P-4052899545946_1592162319_5
ENEC-Zertifikat-Osram-LED-Treiber-OT-40-220-240-24-P-4052899545946_1592162319_6
ENEC-Certificate-Osram-LED-Driver-OT-40-220-240-24-P-4052899545946_1592162319_7
Login
Electrical data
| number of channels: | 1 |
|---|---|
| operating mode: | constant voltage |
| rated voltage: | 220-240 V |
| lifetime: | 50000 h |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 90 °C |
| protection type: | IP67 |
| mounting: | surface mounting |
| protection class: | I |
| environment temperature from: | -30 °C |
| environment temperature to: | 55 °C |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | LED drivers |
|---|
Dimensions & packaging
| Length | 208 mm |
|---|---|
| Width | 43 mm |
| Height | 26 mm |
| Weight | 410 g |
