Osram LED-Driver OT 40/170-240/1A0 1DIM NFC G3 CE - 4052899631885

Inventronics Europe BV

Osram LED-Driver OT 40/170-240/1A0 1DIM NFC G3 CE - 4052899631885

Product number: 4052899631885

Immediately available

€30.87


Prices incl. VAT plus shipping costs net €25.94

Product information "Osram LED-Driver OT 40/170-240/1A0 1DIM NFC G3 CE - 4052899631885"

Discover the high-quality LED driver OT 40/170-240/1A0 1DIM NFC G3 CE, ideal for linear and wide-area applications. With its outstanding efficiency and long service life, this driver is the perfect choice for your lighting requirements.

  • Product name: OT 40/170-240/1A0 1DIM NFC G3 CE
  • EAN: 4052899631885
  • Insulation: SELV
  • Input voltage AC: 170...264 V
  • DC input voltage: 176...276 V
  • Nominal output power: 40 W
  • Nominal output voltage: 15...56 V
  • Nominal output current: 150...1050
  • Power factor [λ]: 0.50C...0.99
  • Inrush current: 31.0 A
  • Max. Number of ECGs on 16 A (B) Fuse: 30
  • Maximum efficiency: 90
  • Ripple (100 Hz): < 4
  • Dimming function: AstroDIM
  • Corridor function: No
  • Constant lumen function: Programmable
  • DALI-2: No
  • Programming interface: n/a
  • Programming device: NFC
  • Emergency mode: No
  • Suitable for emergency lighting: No
  • Service life: 50000 / 100000
  • Operating temperature [Tₐ] in °C: -40...+60
  • Maximum housing temperature [Tᶜ] in °C: 80
  • Protection class: I, II
  • Protection class: IP20

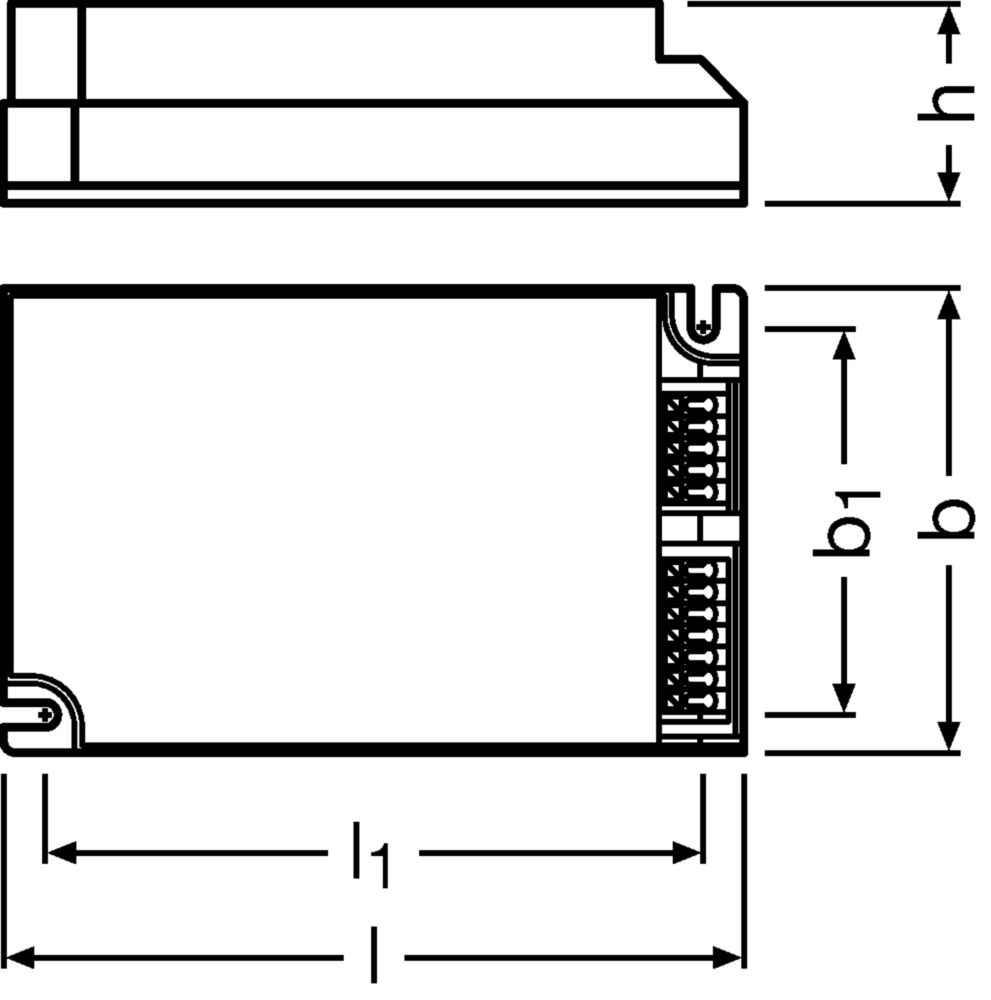

  • Dimensions (L x W x H): 123 x 79 x 33 mm
  • Certificates & approvals: CCC, CE, ENEC, RCM, VDE
The OT 40/170-240/1A0 1DIM NFC G3 CE LED driver offers you a reliable and efficient solution for your lighting projects. Thanks to its design, it can be used flexibly. With a maximum efficiency of up to 90% and a low ripple of < 4%, this driver ensures stable and uniform lighting.
The driver can be easily customised to your specific requirements thanks to the simple adjustment of the rated output currents using NFC. With a service life of 50000 / 100000 hours and a robust design, the OT 40/170-240/1A0 1DIM NFC G3 CE is suitable for long-term use in different environments.
Get this versatile and powerful LED driver and benefit from its outstanding features and certifications that guarantee high quality and safety.
Downloads & Documents
Electrical data
number of channels: 1
output current: 150, 175, 200, 225, 250, 275, 300, 325, 350, 375, 400, 425, 450, 475, 500, 525, 550, 575, 600, 625, 650, 675, 700, 725, 750, 775, 800, 825, 850, 875, 900, 925, 950, 975, 1000, 1025, 1050
operating mode: constant current
Dimensions & packaging
EAN 4052899631885

Inventronics GmbH
Parkring 31-33,
85748 Garching, Germany

Email: support@inventronicsglobal.com
https://www.inventronicsglobal.com/en/
