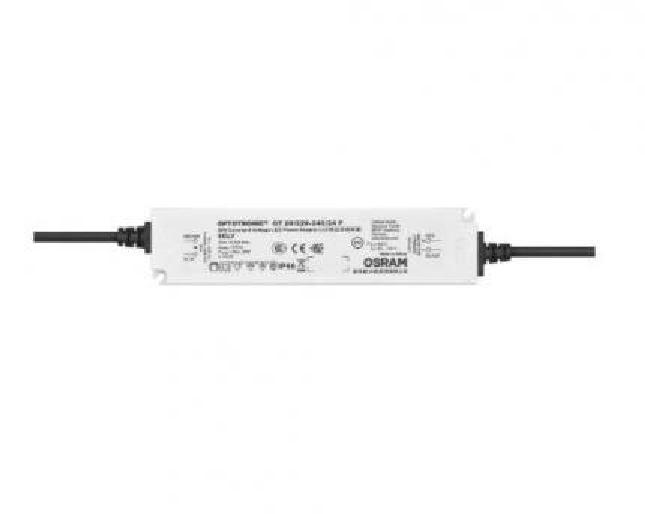

Osram LED-Driver OT 20/220-240/24 P - 4052899545922
Osram LED-Driver OT 20/220-240/24 P - 4052899545922
Immediately available
That's why you should buy this product now
- High Quality at a low price
- 4.8 out of 5 ⭐⭐⭐⭐⭐ on Google
- Short delivery times for stock items
€36.10
Prices incl. VAT plus shipping costs net €30.34
Product information "Osram LED-Driver OT 20/220-240/24 P - 4052899545922"
IP67 protected 24V constant voltage driver
The IP67-protected LED ECG with DC mode functionality OT 20/220-240/24 P by OSRAM is suitable for luminaire installation or independent installation indoors and outdoors : for example, for facades, public squares, cruise ships or for signages. The stable output power is 20 watts.
Installation in cold and hot environments
Thanks to its wide operating temperature range of -30 to + 55 ° C, the 24V constant voltage LED driver is also suitable for mounting in extremely cold and hot environments. The Smart Power Supply technology provides boosting power to turn on cold LEDs.
The OSRAM LED driver has a high electronically reversible short-circuit, overload and over-temperature protection as well as an overvoltage protection up to 4 kV (L-N) / 6 kV (L / N-PE). The lifetime is up to 50,000 hours at maximum housing temperature.
Downloads & Documents
Datasheet-Osram-LED-Driver-OT-20-220-240-24-P-4052899545922_1592148913_3
Declaration-of-Confirmity-Osram-LED-Driver-OT-20-220-240-24-P-4052899545922_1592148913_4
ENEC-Certificate-Osram-LED-Driver-OT-20-220-240-24-P-4052899545922_1592148907_6
CB-Certificate-Osram-LED-Driver-OT-20-220-240-24-P-4052899545922_1592148907_7
Datenblatt-Osram-LED-Treiber-OT-20-220-240-24-P-4052899545922_1592148907_8
Login
Electrical data
| number of channels: | 1 |
|---|---|
| operating mode: | constant voltage |
| rated voltage: | 220-240 V |
| lifetime: | 50000 h |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 85 °C |
| protection type: | IP66 |
| material: | metal |
| mounting: | surface mounting |
| protection class: | II |
| environment temperature from: | -30 °C |
| environment temperature to: | 55 °C |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | LED drivers |
|---|

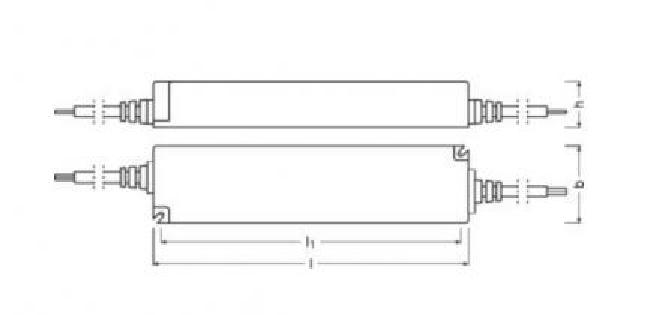

Dimensions & packaging
| EAN | 4052899545922 |
|---|---|
| Length | 178 mm |
| Width | 43 mm |
| Height | 25 mm |
| Weight | 315 g |
